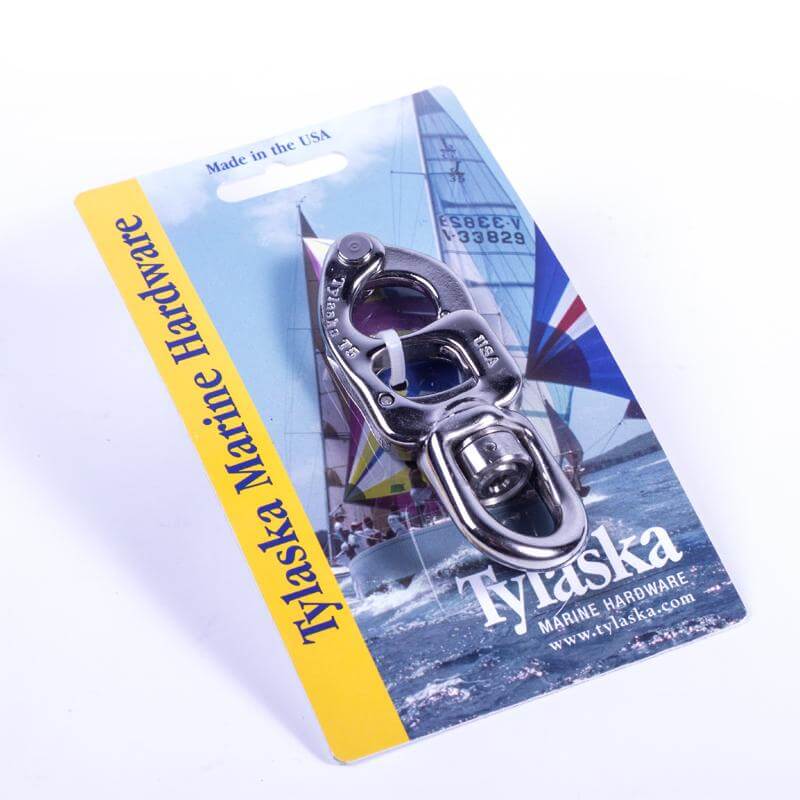

Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a SWL of 1,136kg and weigh just 59g in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
Taille bâteau recommandée - Max (ft) | 30 |
Taille bâteau recommandée - Min (ft) | 20 |
Style | Swivel Bail (Small) |
Matériau | Acier inoxydable |
Material Grade | 17-4PH SS |
Charge de travail (kg) | 1136 |
Charge de rupture (kg) | 2272 |
A (mm) | 14,2 |
B (mm) | 14,2 |
C (mm) | 13,5 |
D (mm) | 14,2 |
E (mm) | 74,6 |
Poids (g) | 59 |
