Wichard Captive pin bow shackle - Dia 6 mm

17,40 € 16,53 €
5% Off
SKU:
N/A
Brand: Wichard

30-day money-back

 14-day returns

 Express shipping available

Share :

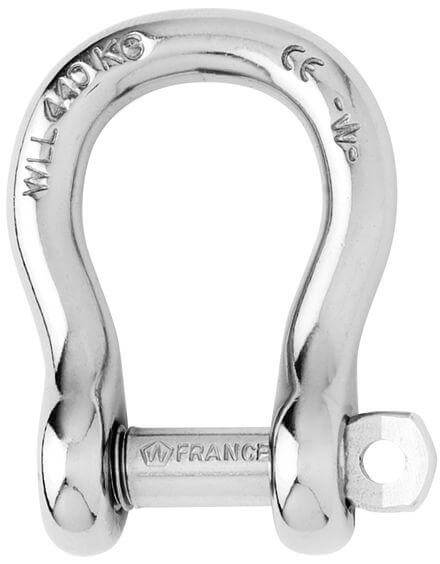

Captive pin bow shackle forged in grade 316L stainless steel

The pin is connected to the body at all times even when opened

The pin is locked into one of the indentations

No risks of loose due to vibrations

Outstanding working and breaking loads

Single handed operation for more safety

WLL: only for industrial applications (lifting i.e…)

CE marking and batch number


Applications

To be used when ample room is required

Possibility to attach several lines or cables

Spécifications

Matériau Acier inoxydable
Material Grade AISI 316L
Ø axe (mm) 7
Charge de travail (kg) 600
Charge de rupture (kg) 2200
A (mm) 27
B (mm) 12
C (mm) 7
D (mm) 14
E (mm) 6
M (mm) 31
Poids (g) 33
