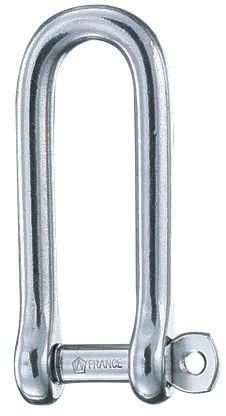

Wichard Captive pin long D shackle - Dia 6 mm

https://www.upffront.com/web/image/product.template/29746/image_1920?unique=06f5576

18,34 € 18.34 EUR 19,30 €

16,22 €

5% Off

Available on request

spring sale upffront sailing systems

04
Days
:
16
Hours
:
56
Mins
:
23
Secs
  • Marque
  • Matériau
  • Material Grade
  • Ø axe (mm)
  • Charge de travail (kg)
  • Charge de rupture (kg)
  • A (mm)
  • B (mm)
  • C (mm)
  • D (mm)
  • E (mm)
  • F (mm)
  • G (mm)
  • Poids (g)

Cette combinaison n'existe pas.

Product Image

Wichard Captive pin long D shackle - Dia 6 mm

19,30 € 18,34 €
5% Off
SKU:
N/A
Brand: Wichard

30-day money-back

 14-day returns

 Express shipping available

Share :

Captive pin long "D" shackle forged in grade 316L stainless steel

The pin is connected to the body at all times even when opened

The pin is locked into one of the indentations

No risks of loose due to vibrations

Outstanding working and breaking loads


Applications

Standard applications of shackle requiring more length

Attachment applications: blocks, head …

Spécifications

Matériau Acier inoxydable
Material Grade AISI 316L
Ø axe (mm) 7
Charge de travail (kg) 680
Charge de rupture (kg) 2200
A (mm) 46
B (mm) 12
C (mm) 7
D (mm) 14
E (mm) 6
F (mm) 63
G (mm) 32
Poids (g) 40
