Harken 35 2-Speed Electric (Horizontal) 24V All Chrome Radial Winch (2-Speed Manual)
Specifications for Harken 35 2-Speed Electric (Horizontal) 24V All Chrome Radial Winch (2-Speed Manual)

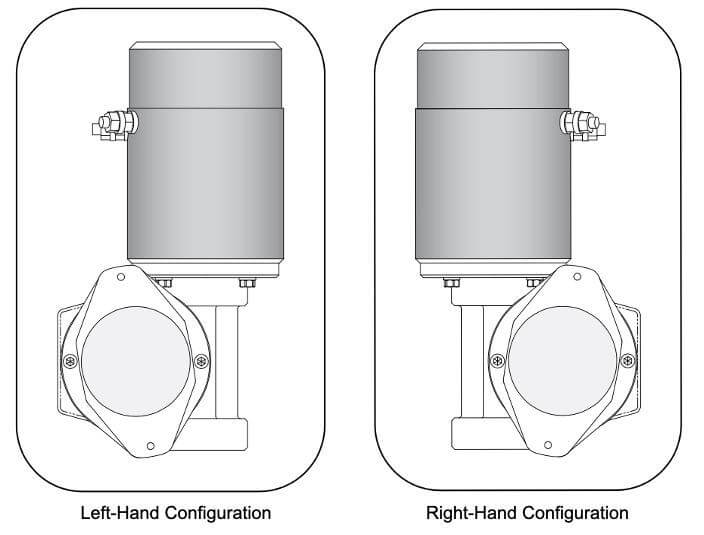

| Mount | Right-Hand Mount or Left-Hand Mount |
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Skirt Details | Chrome |
| Size | 35 |
| Style | Horizontal |
| Power (W) | 900 |
| Deck thickness Max (mm) | 43 |
| Voltage (V) | 24 |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 119 |
| Line recovery per rotation - 2nd gear (mm) | 45 |
| Base Ø (mm) | 149 |
| Drum Ø (mm) | 80.5 |
| Height (mm) | 170 |
| Line entry height (mm) | 80 |
| Motor Depth (mm) | 155 |
| Motor Length (mm) | 227 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 2 |
| A (mm) | 80.5 |
| B (mm) | 149 |
| C (mm) | 170 |
| D (mm) | 80 |
| E (mm) | 43 |
| F (mm) | 155 |
| G (mm) | 227 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 2.13 |
| Gear ratio 2 (X : 1) | 5.65 |
| Power ratio 1 (X : 1) | 13.5 |
| Power ratio 2 (X : 1) | 35.9 |
| Pulling load - Max (kg) | 650 |
| Line speed - 1st gear (m/min) | 29.2 |
| Line speed - 2nd gear (m/min) | 11 |
| Weight (g) | 15200 |
Electric Self-Tailing Radial Chromed Bronze Winch
Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads and stress-free seasonal maintenance.
Chrome winches combine the elegance of highly-polished finishes with the dependable low-friction pulling power of Harken gearing systems.
Specifications
| Mount | Right-Hand Mount or Left-Hand Mount |
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Skirt Details | Chrome |
| Size | 35 |
| Style | Horizontal |
| Power (W) | 900 |
| Deck thickness Max (mm) | 43 |
| Voltage (V) | 24 |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 119 |
| Line recovery per rotation - 2nd gear (mm) | 45 |
| Base Ø (mm) | 149 |
| Drum Ø (mm) | 80.5 |
| Height (mm) | 170 |
| Line entry height (mm) | 80 |
| Motor Depth (mm) | 155 |
| Motor Length (mm) | 227 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 2 |
| A (mm) | 80.5 |
| B (mm) | 149 |
| C (mm) | 170 |
| D (mm) | 80 |
| E (mm) | 43 |
| F (mm) | 155 |
| G (mm) | 227 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 2.13 |
| Gear ratio 2 (X : 1) | 5.65 |
| Power ratio 1 (X : 1) | 13.5 |
| Power ratio 2 (X : 1) | 35.9 |
| Pulling load - Max (kg) | 650 |
| Line speed - 1st gear (m/min) | 29.2 |
| Line speed - 2nd gear (m/min) | 11 |
| Weight (g) | 15200 |
