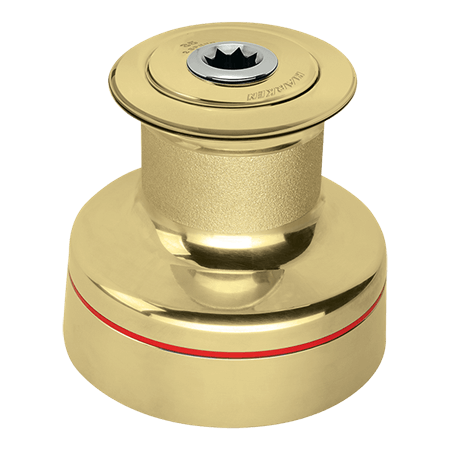

Specifications for Harken 40 2-Speed Plain-Top Radial Bronze Winch
| Recommended line - Max Ø (mm) | N/A |
| Recommended line - Min Ø (mm) | N/A |
| Size | 40 |
| Style | Plain-Top |
| Material | Bronze |
| Base Ø (mm) | 157 |
| Drum Ø (mm) | 80 |
| Height (mm) | 153 |
| Line entry height (mm) | 82 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 850 |
| A (mm) | 80 |
| B (mm) | 157 |
| C (mm) | 153 |
| D (mm) | 82 |
| Gear ratio 1 (X : 1) | 2.13 |
| Gear ratio 2 (X : 1) | 6.28 |
| Power ratio 1 (X : 1) | 13.5 |
| Power ratio 2 (X : 1) | 39.9 |
| Weight (g) | 6100 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. Plain-top winches are best handled by two crew—one to trim and one to tail the line. Harken's all-bronze finish enhances your yacht’s classic look, while providing the low-friction pulling power of Harken’s gearing systems.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | N/A |
| Recommended line - Min Ø (mm) | N/A |
| Size | 40 |
| Style | Plain-Top |
| Material | Bronze |
| Base Ø (mm) | 157 |
| Drum Ø (mm) | 80 |
| Height (mm) | 153 |
| Line entry height (mm) | 82 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 850 |
| A (mm) | 80 |
| B (mm) | 157 |
| C (mm) | 153 |
| D (mm) | 82 |
| Gear ratio 1 (X : 1) | 2.13 |
| Gear ratio 2 (X : 1) | 6.28 |
| Power ratio 1 (X : 1) | 13.5 |
| Power ratio 2 (X : 1) | 39.9 |
| Weight (g) | 6100 |
