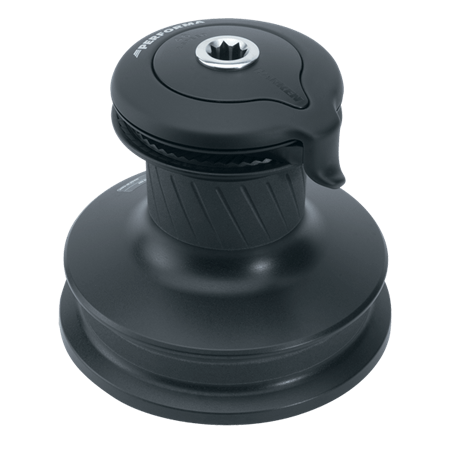

Specifications for Harken 46 2-Speed 2 Drum S/T Quattro Performa™ Winch
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 46 |
| Style | Self-Tailing |
| Material | Aluminium |
| Base Ø (mm) | 218 |
| Drum Ø (mm) | 100 |
| Drum Ø - lower (mm) | 188 |
| Height (mm) | 202 |
| Line entry height (mm) | 90 |
| Line entry height - lower (mm) | 24 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 1300 |
| A (mm) | 100 |
| B (mm) | 218 |
| C (mm) | 202 |
| D (mm) | 90 |
| Gear ratio 1 (X : 1) | 2.3 |
| Gear ratio 2 (X : 1) | 9.17 |
| Power ratio 1 (X : 1) | 11.7 |
| Weight (g) | 6200 |
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. The Quattro model is an all-in-one Aluminium winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.
Specifications
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 46 |
| Style | Self-Tailing |
| Material | Aluminium |
| Base Ø (mm) | 218 |
| Drum Ø (mm) | 100 |
| Drum Ø - lower (mm) | 188 |
| Height (mm) | 202 |
| Line entry height (mm) | 90 |
| Line entry height - lower (mm) | 24 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 1300 |
| A (mm) | 100 |
| B (mm) | 218 |
| C (mm) | 202 |
| D (mm) | 90 |
| Gear ratio 1 (X : 1) | 2.3 |
| Gear ratio 2 (X : 1) | 9.17 |
| Power ratio 1 (X : 1) | 11.7 |
| Weight (g) | 6200 |
