Harken 46 2-Speed Electric (Horizontal) 24V Aluminium Radial Rewind Winch (2-Speed Manual)
Specifications for Harken 46 2-Speed Electric (Horizontal) 24V Aluminium Radial Rewind Winch (2-Speed Manual)

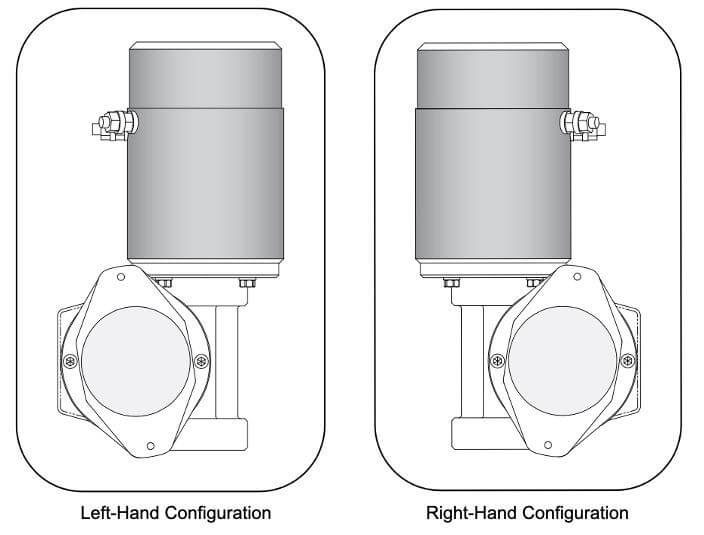

| Mount | Right-Hand Mount or Left-Hand Mount |
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 10 |
| Skirt Details | Black Plastic |
| Size | 46 |
| Style | Horizontal |
| Power (W) | 700 |
| Deck thickness Max (mm) | 41 |
| Voltage (V) | 24 |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 137 |
| Line recovery per rotation - 2nd gear (mm) | 34 |
| Base Ø (mm) | 192 |
| Drum Ø (mm) | 100 |
| Height (mm) | 203 |
| Line entry height (mm) | 91 |
| Motor Depth (mm) | 156 |
| Motor Length (mm) | 282 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 2 |
| A (mm) | 100 |
| B (mm) | 192 |
| C (mm) | 203 |
| D (mm) | 91 |
| E (mm) | 41 |
| F (mm) | 156 |
| G (mm) | 282 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 2.3 |
| Gear ratio 2 (X : 1) | 9.17 |
| Power ratio 1 (X : 1) | 11.7 |
| Power ratio 2 (X : 1) | 46.5 |
| Pulling load - Max (kg) | 1300 |
| Line speed - 1st gear (m/min) | 25.5 |
| Line speed - 2nd gear (m/min) | 6.5 |
| Weight (g) | 16000 |
Electric Self-Tailing Radial Rewind Aluminium Winch
Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.
The Rewind Radial electric winch is the latest in Harken’s “easy sailing” solutions for cruisers, and the first winch of its kind in the marine market. Activated remotely by twin in/out buttons, the Rewind safely eases and trims highly-loaded sails in both directions without ever taking the line out of the self-tailer.
Like all Harken electric winches, the Rewind operates like a normal 2-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer as the sail is adjusted with fingertip control.
Aluminum winches are designed for sailors who want lightweight, extremely strong winches with plenty of power.
Specifications
| Mount | Right-Hand Mount or Left-Hand Mount |
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 10 |
| Skirt Details | Black Plastic |
| Size | 46 |
| Style | Horizontal |
| Power (W) | 700 |
| Deck thickness Max (mm) | 41 |
| Voltage (V) | 24 |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 137 |
| Line recovery per rotation - 2nd gear (mm) | 34 |
| Base Ø (mm) | 192 |
| Drum Ø (mm) | 100 |
| Height (mm) | 203 |
| Line entry height (mm) | 91 |
| Motor Depth (mm) | 156 |
| Motor Length (mm) | 282 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 2 |
| A (mm) | 100 |
| B (mm) | 192 |
| C (mm) | 203 |
| D (mm) | 91 |
| E (mm) | 41 |
| F (mm) | 156 |
| G (mm) | 282 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 2.3 |
| Gear ratio 2 (X : 1) | 9.17 |
| Power ratio 1 (X : 1) | 11.7 |
| Power ratio 2 (X : 1) | 46.5 |
| Pulling load - Max (kg) | 1300 |
| Line speed - 1st gear (m/min) | 25.5 |
| Line speed - 2nd gear (m/min) | 6.5 |
| Weight (g) | 16000 |
