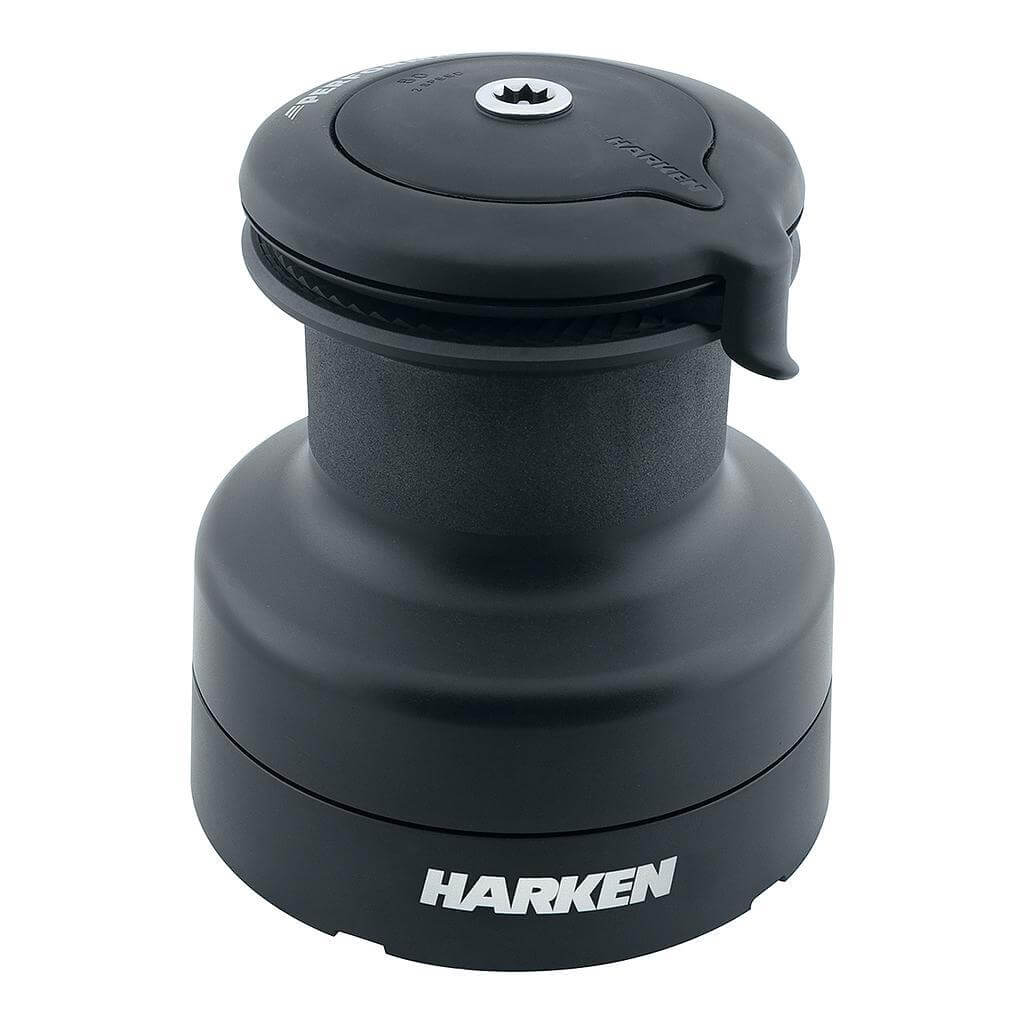

Harken 80 2-Speed S/T Performa™ Winch

15,553.98 € 15,553.98 €
0% Off
SKU:
N/A
Brand: Harken

30-day money-back

 14-day returns

 Express shipping available

Share :

Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications

Recommended line - Max Ø (mm) 18
Recommended line - Min Ø (mm) 10
Size 80
Style Self-Tailing
Material Aluminium
Base Ø (mm) 287
Drum Ø (mm) 175
Height (mm) 320
Line entry height (mm) 164
Gears (Manual) 2-Speed
SWL (kg) 4500
A (mm) 175
B (mm) 287
C (mm) 320
D (mm) 164
Gear ratio 1 (X : 1) 9.94
Gear ratio 2 (X : 1) 32.12
Power ratio 1 (X : 1) 28.85
Power ratio 2 (X : 1) 93.24
Weight (g) 21200
