Harken® ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Aluminum Cam-Matics® are hardcoat-anodized for high-load, high-wear, continuous adjustment applications.

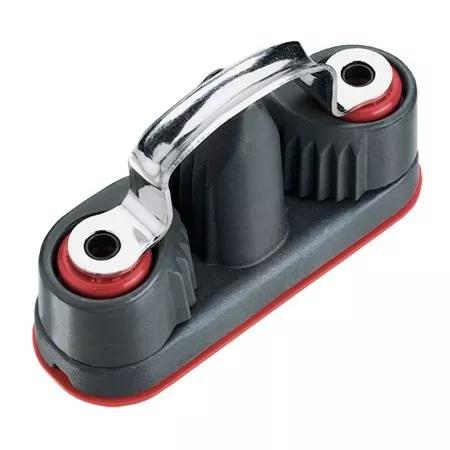

The Double Cam-Matic cleat is perfect for double sheet guidance. Depending on requirements, the sheet can be operated particularly quickly or with double gear ratio for particularly fine handling. Several layers of heavy-duty ball bearings and the precise V-shape reduce friction. The rounded teeth reduce abrasion and press the rope together instead of cutting it. The teeth are arranged so that each line diameter is held by several teeth.
Specifications
| Fastener Ø (mm) | 5 FH |
| Fastener hole centres (mm) | 62 |
| Width (mm) | 32 |
| Length (mm) | 81 |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 8 |
| Height (mm) | 53 |
| SWL (kg) | 227 |
| NBL (kg) | 340 |
| Weight (g) | 126 |
