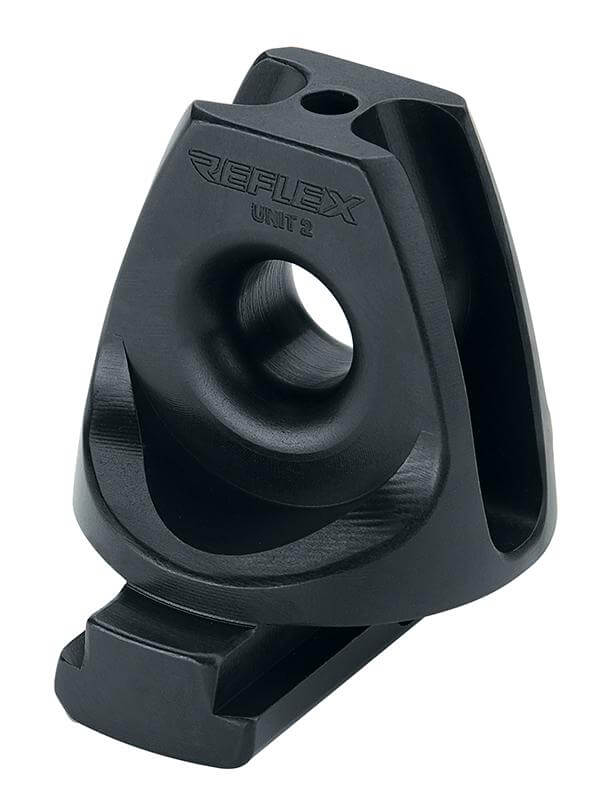

Specifications for Harken Reflex unit 2 adapter - Fixed tack
| Recommended line - Max Ø (mm) | 12 |
| B (mm) | 167 |
| C (mm) | 64 |
| D (mm) | 111 |
| E (mm) | 121 |
| F (mm) | 138 |
| Weight (g) | 147 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
This Fixed Tack Terminal is for use with the Harken Reflex furling system and code zero sails, when the torsion cable is inside a luff pocket. The rolled sail easily disconnects with the pull of one spring-loaded pin, and a new furled sail slides and locks into the furling unit's T-slot. Each head and tack swivel stays with its sail permanently and is stowed together, ready for the next deployment. A padded cover prevents damage to spars. One Fixed Tack Terminal is included with each Harken Unit 2 Reflex system. Order with Reflex Head Swivel 7352.28 for code zero sails.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 12 |
| B (mm) | 167 |
| C (mm) | 64 |
| D (mm) | 111 |
| E (mm) | 121 |
| F (mm) | 138 |
| Weight (g) | 147 |
