KA-KHL02_Karver Drawing Halyard Lock_001.pdf

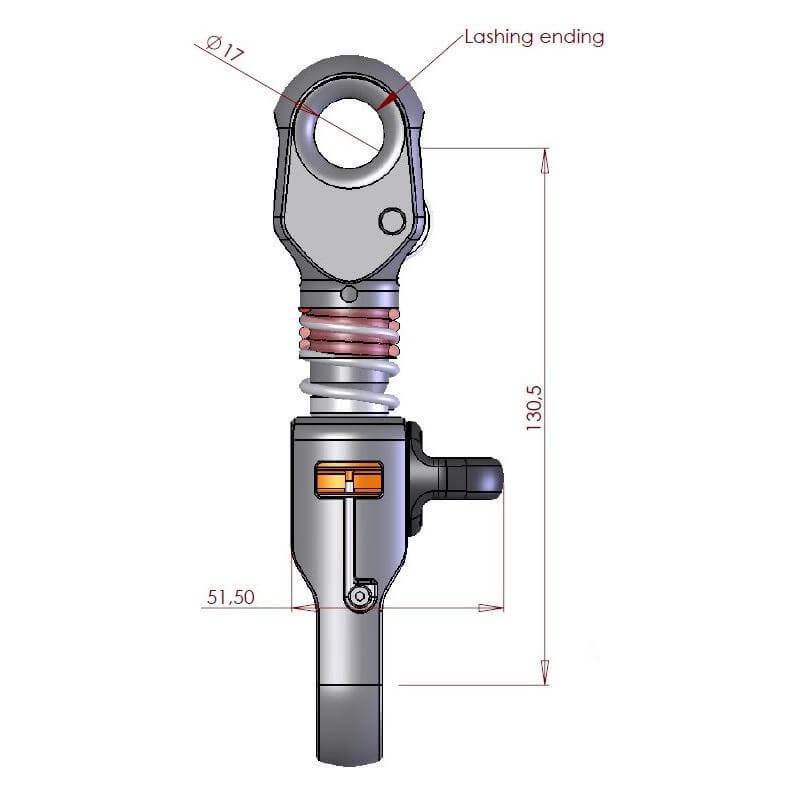

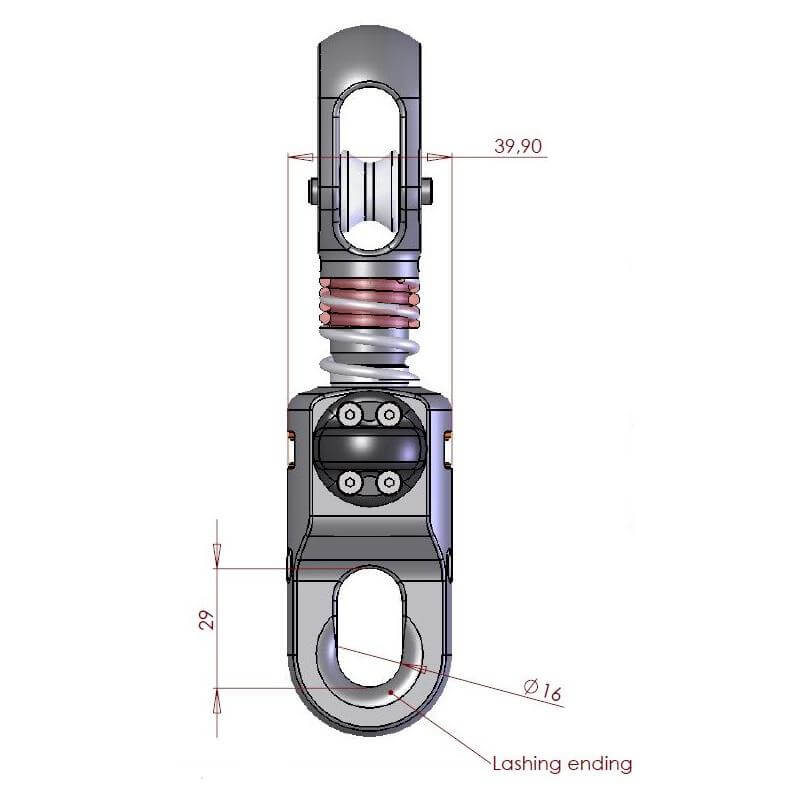

Karver 2T Halyard Lock Technical Drawing
|
|
|
|
KA-KHL02_Karver 2D Drawing Halyard Lock_001.dwg
Karver KHL2 2D Halyard Lock Technical Drawing
|
|
|
|
KA-KHL02_Karver 3D Drawing Halyard Lock_001.IGS
Karver KHL2 3D Halyard Lock Technical Drawing
|
|
|
|
KA_Karver Brochure Locks EN_001.pdf
Karver Locks Catalogue
|

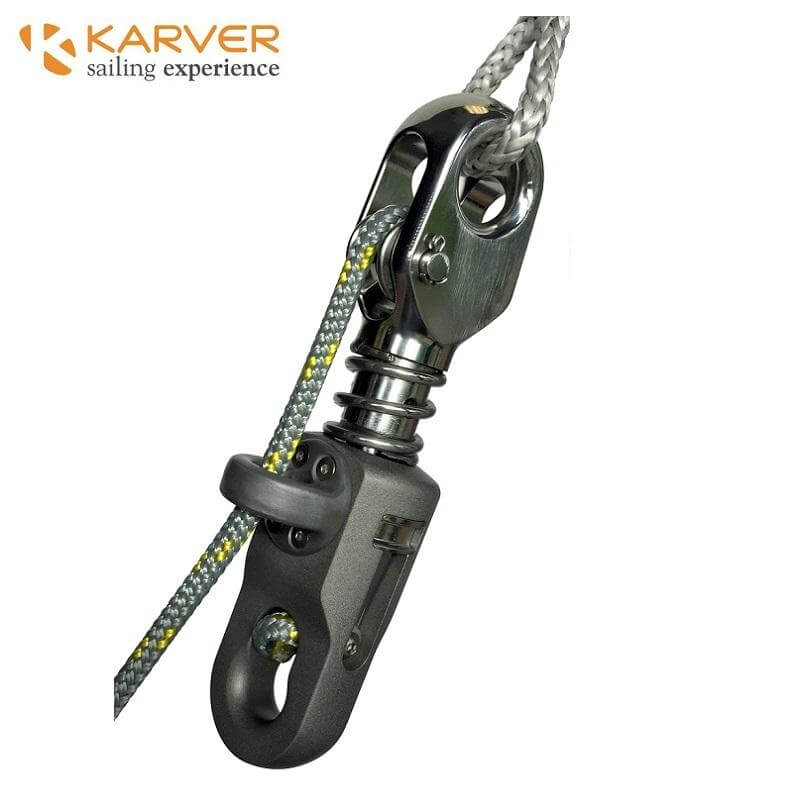

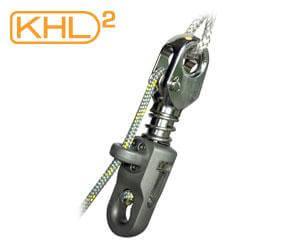

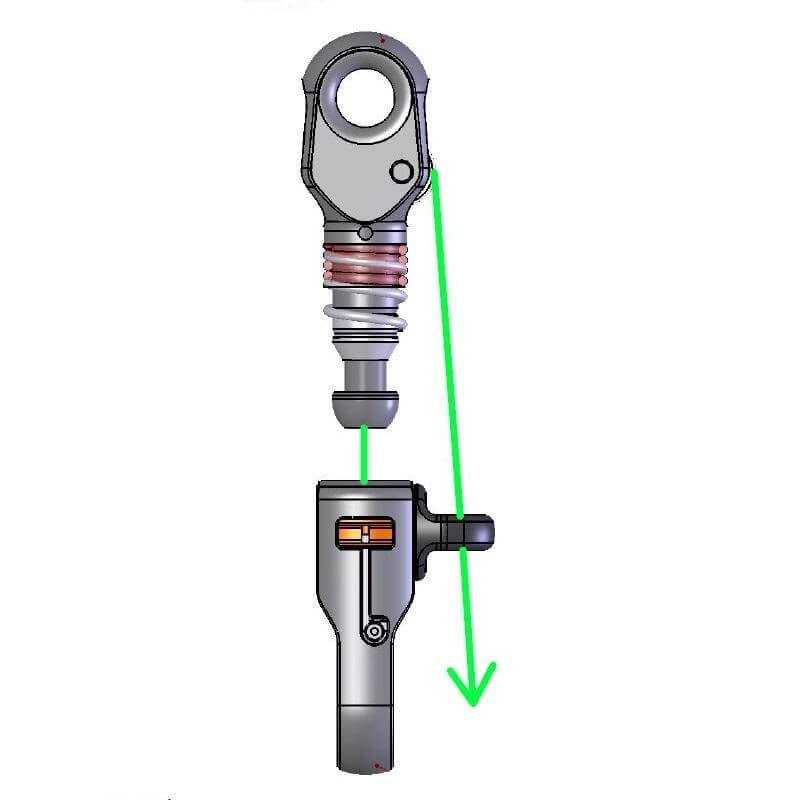

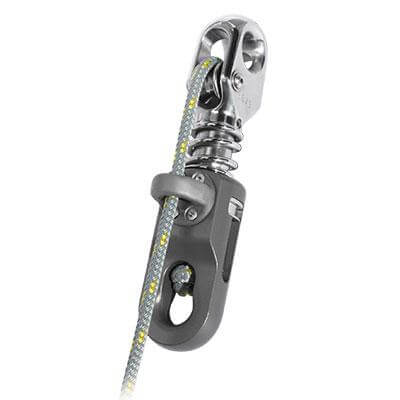

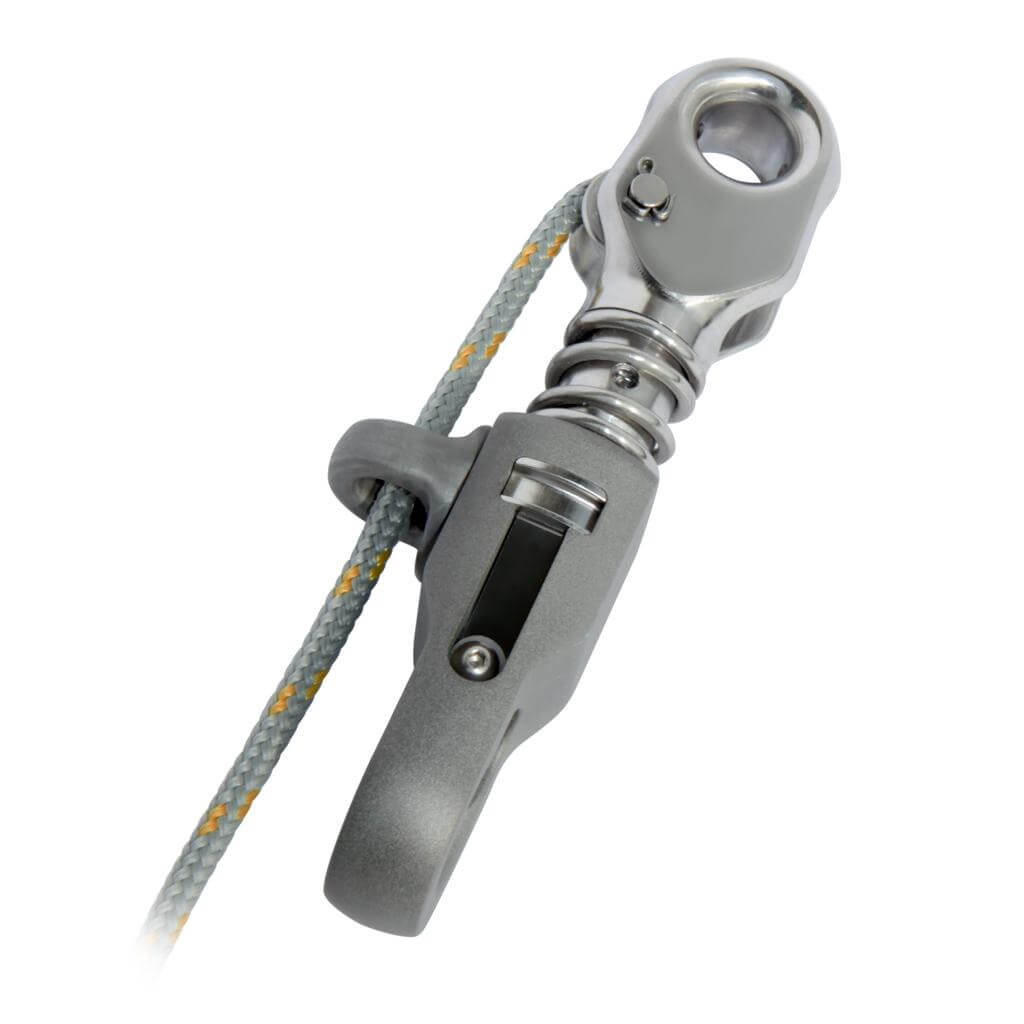

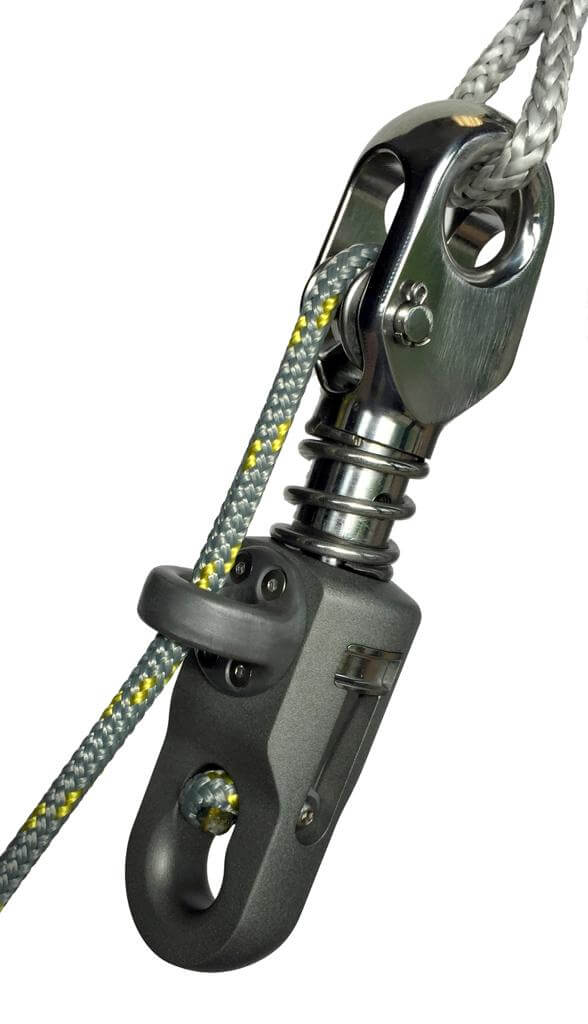

As most small boats are not equiped to handle a 2:1 halyard purchase system, the KFH lock used in conjunction with a 2:1 purchase at the tack offers a flexible, high performance solution for light genoa's. The sail is hoisted into the lock at the head and then the luff is tensioned using a 2:1 or 3:1 purchase at the tack. This easy to retrofit and install, compact and lightweight lock is based on Karvers tried and tested KFH furling lock and has been proven at sea to be reliable and efficient. N.B. This is NOT a swivelling lock - if you require a swiveling lock for a furling headsail or gennaker, please see the karver KFH range. The recommended line diameter is the optimal sizing for the hoist line and will be smaller than an existing halyard. The maximum hoist line size for the KHL2 is 7.5mm
Specifications

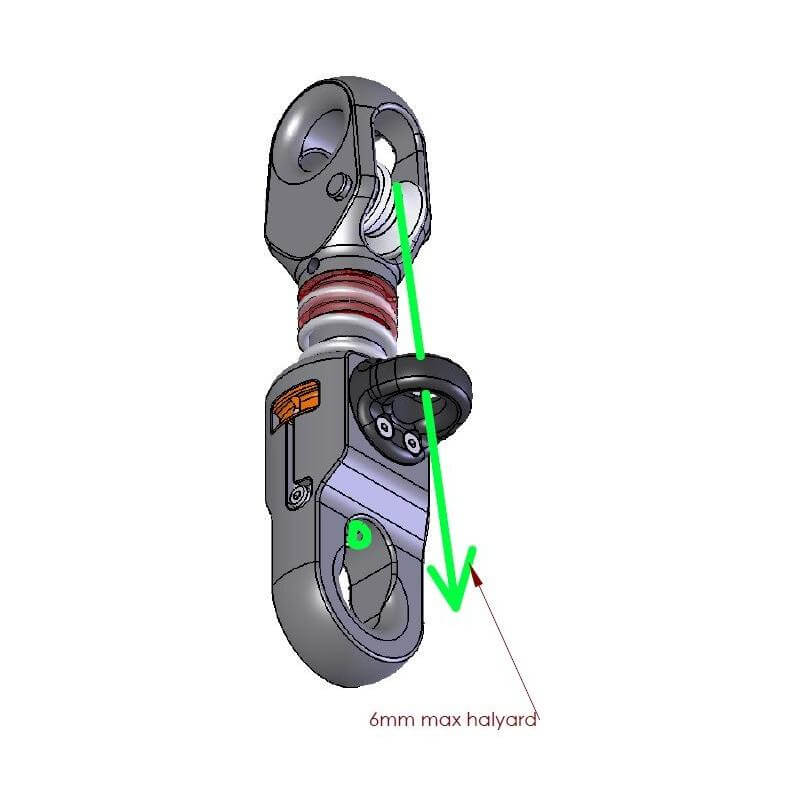

| Recommended line - Max Ø (mm) | 6 |
| Material | Stainless Steel |
| SWL (kg) | 2000 |
| NBL (kg) | 4000 |
| Weight (g) | 435 |
