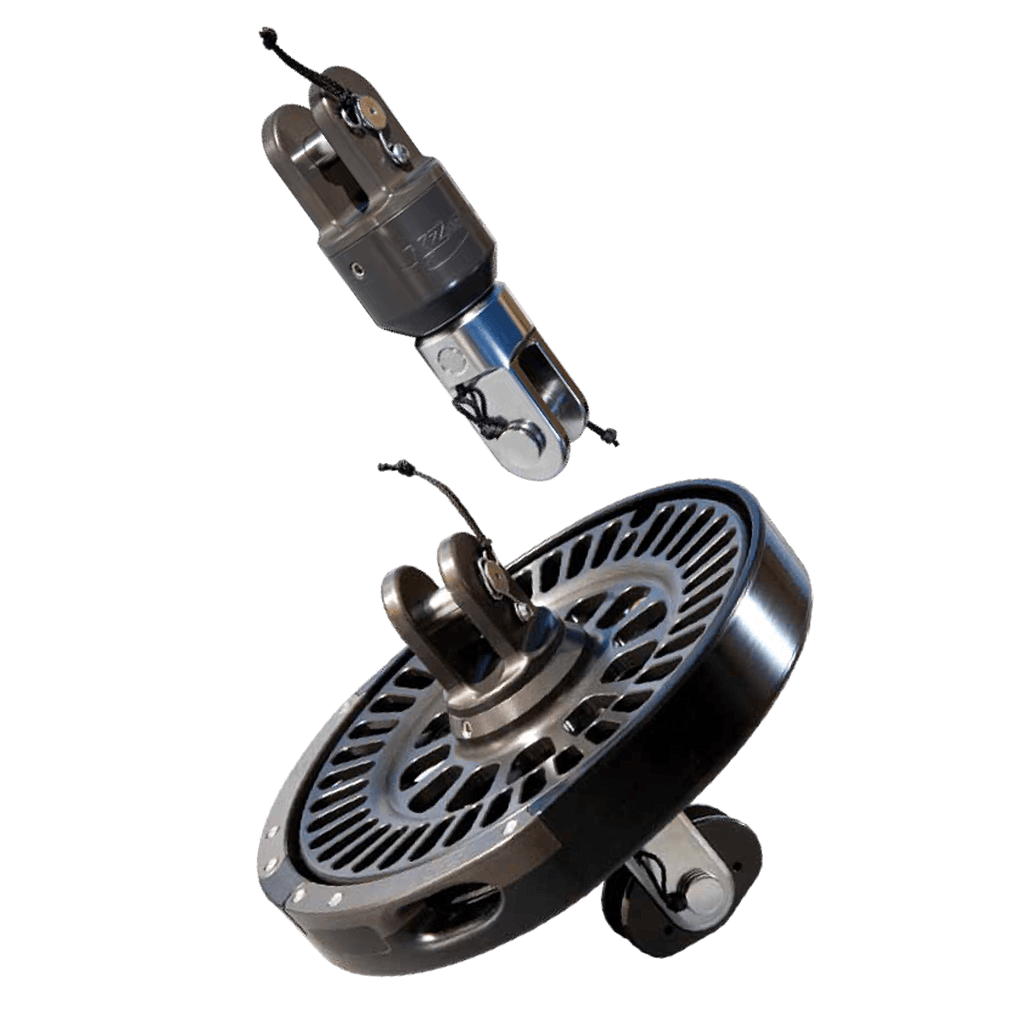

KZ Racefurlers are world renowned for performance and reliability. With the unique modular approach, each furler size can be adapted to suit the specific application.
Each furler is available with a choice of forks on top and various fittings for below the drum, such as Wichard or Tylaska shackles, 2:1 or 3:1 purchase. Similar options are available for the top swivels.
We have grouped the furlers to have the same jaw width between the drum and swivel for simplicity of matching to a torsional cable. Options for below the drum and above the swivel can be chosen via the selection buttons.
Please refer to the relevant technical drawing for all properties.
The Inshore range is a simpler and more cost effective alternative to the Offshore range, suitable for cruising boats and inshore racing.
Specifications
| Swivel Upper fitting | N1 - 12.5mm Jaw or N2 - 16mm Jaw |
| Drum Lower fitting | D-shackle or Wichard Plunger Snap Shackle or TA5 - Tylaska Trigger Snap Shackle |
| Swivel Lower fitting | D-shackle |
| Drum Upper fitting | N2 - 16mm Jaw |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 16 |
| SWL (kg) | 1000 |
| NBL (kg) | 1800 |
