Specifications for Lewmar 55 2-Speed Self-Tailing Black Ionised EVOⓇ Race+ Winch
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 55 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 280 |
| Line recovery per rotation - 2nd gear (mm) | 70 |
| Base Ø (mm) | 205 |
| Drum Ø (mm) | 105 |
| Height (mm) | 250 |
| Line entry height (mm) | 115 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 7 |
| B (mm) | 205 |
| D (mm) | 105 |
| H (mm) | 250 |
| L (mm) | 115 |
| Gear ratio 1 (X : 1) | 2.8 |
| Gear ratio 2 (X : 1) | 11.2 |
| Power ratio 1 (X : 1) | 13.8 |
| Power ratio 2 (X : 1) | 54.0: 1 |
| Weight (g) | 8300 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|

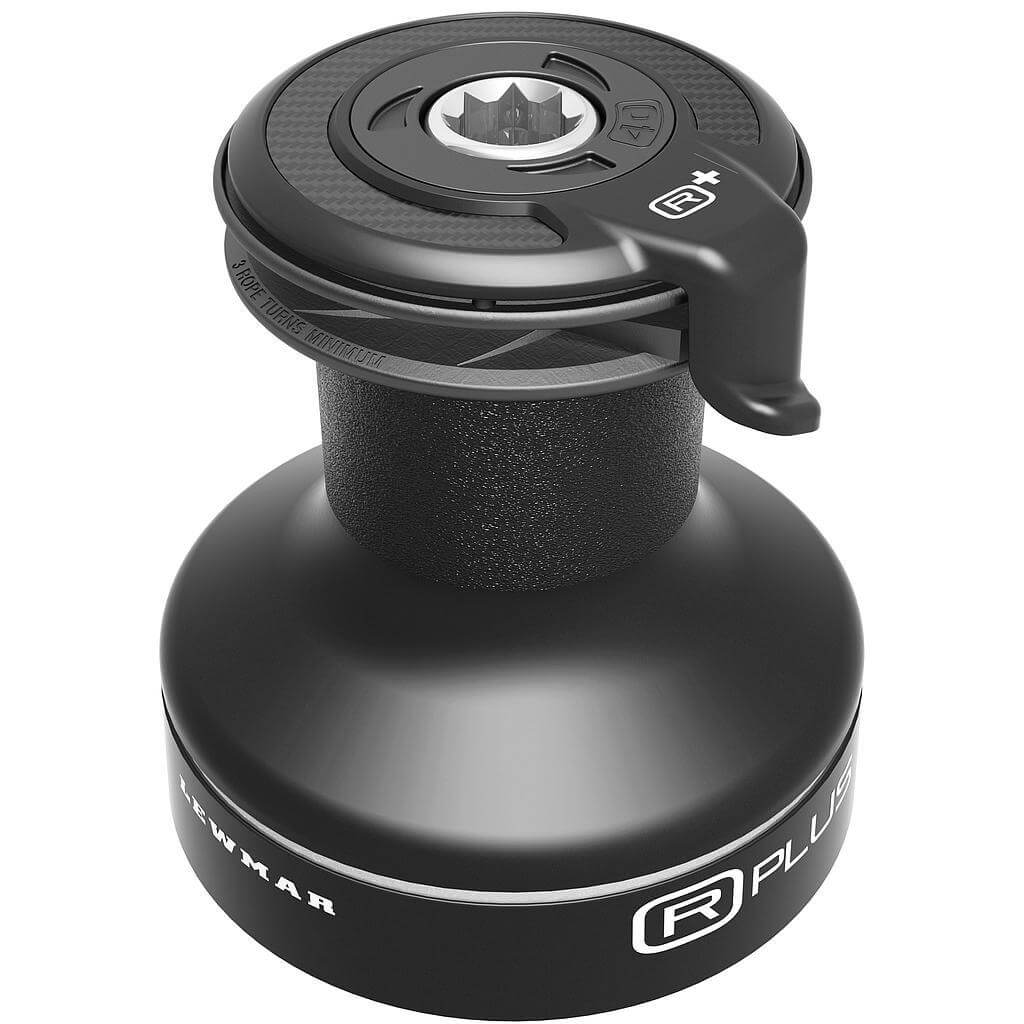

Lewmar's Self-Tailing EVO® Race+ Black Ionised Winch
Lewmar's EVO® Race+™ winches use a lightweight cast aluminium base stem and machined aluminium upper stem, together with other advanced material choices, to offer significant weight savings over standard EVO® winches.
Features
Lightweight centre stem
Lightened main spindle
Cast aluminium feeder arm
Composite bearing technology
"No tools" servicing
Carbon fibre inlay
Silver trim stripe
White pad-printed decals
Black anodised drum
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 55 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 280 |
| Line recovery per rotation - 2nd gear (mm) | 70 |
| Base Ø (mm) | 205 |
| Drum Ø (mm) | 105 |
| Height (mm) | 250 |
| Line entry height (mm) | 115 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 7 |
| B (mm) | 205 |
| D (mm) | 105 |
| H (mm) | 250 |
| L (mm) | 115 |
| Gear ratio 1 (X : 1) | 2.8 |
| Gear ratio 2 (X : 1) | 11.2 |
| Power ratio 1 (X : 1) | 13.8 |
| Power ratio 2 (X : 1) | 54.0: 1 |
| Weight (g) | 8300 |
