Specifications for Lewmar DC1 Rope Clutch 6-8mm, Triple
| Width (mm) | 83.7 |
| Length (mm) | 126 |
| Recommended line - Max Ø (mm) | 8 |
| Recommended line - Min Ø (mm) | 6 |
| Height (mm) | 72 |
| SWL (kg) | 300 |
| A (mm) | 27 |
| B (mm) | 29 |
| E (mm) | 26 |
| F (mm) | 79 |
| Weight (g) | 850 |

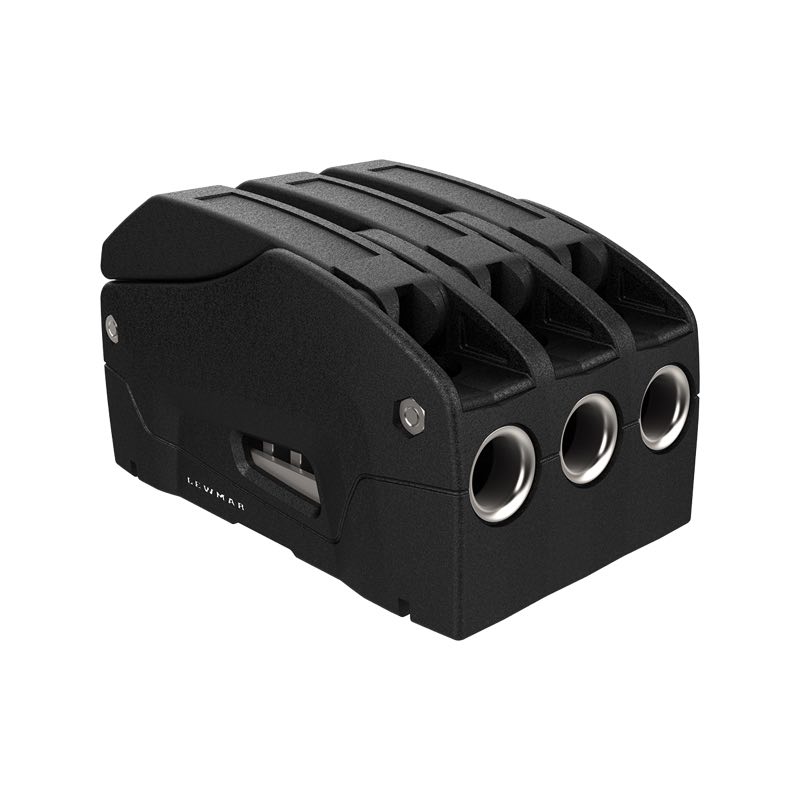

The Lewmar DC1 Triple Rope Clutch (6-8mm) is a high-performance, multi-line clutch designed for secure and efficient management of three lines ranging from 6mm to 8mm in diameter. With a Safe Working Load (SWL) of 300kg per line, this clutch utilises Lewmar’s advanced Domino Cluster technology to ensure a firm yet rope-friendly grip, minimising wear while delivering reliable holding power. Its triple-line configuration makes it an excellent choice for applications where space-saving and efficiency are essential.
Key Features:

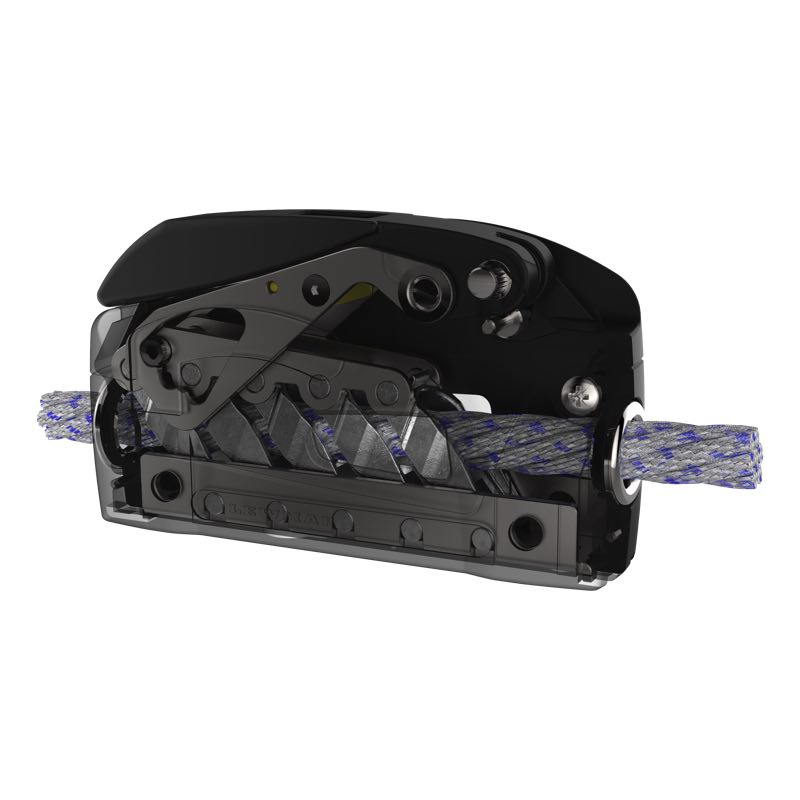

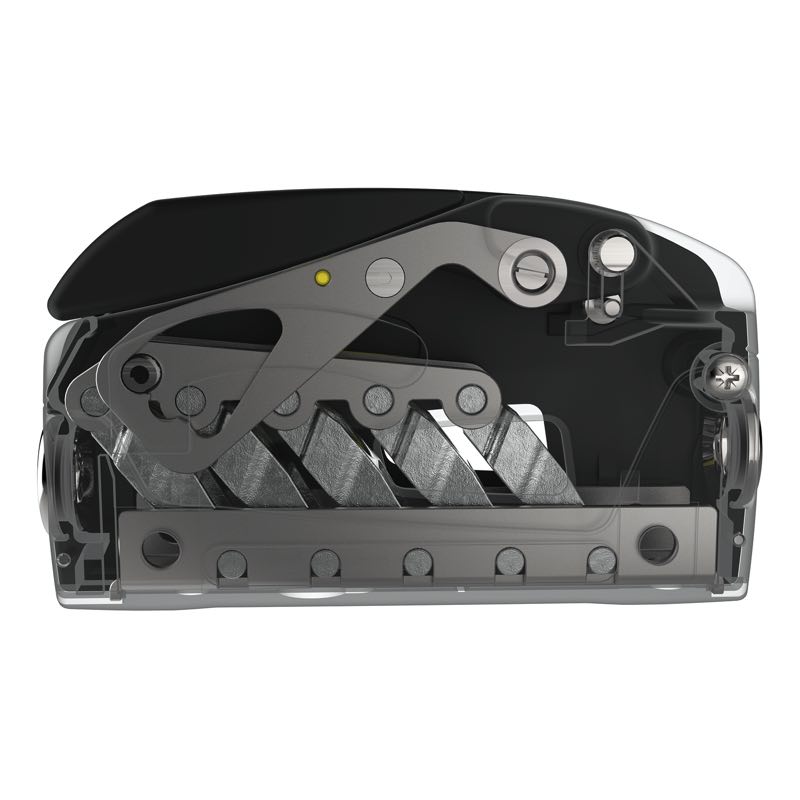

- Domino Cluster Mechanism: Unlike traditional cam-based clutches, the DC1’s Domino Cluster system evenly distributes pressure across the rope, reducing wear while maintaining a secure grip.
- Triple-Line Management: Designed to handle three independent lines, making it ideal for halyards, reefing lines, and control lines, allowing for efficient deck organisation.
- Smooth & Controlled Release: The pull-back handle system, combined with Lewmar’s patented clutching technology, enables gradual and precise line release even under load, ensuring greater control in critical manoeuvres.
- Compact & Durable Design: Built with stainless steel fairleads to reduce friction and extend lifespan, the clutch is lightweight yet robust, making it a dependable choice for performance sailing.
Specifications:
- Line Size Compatibility: 6mm to 8mm (1/4" to 5/16")
- Safe Working Load (SWL): 300kg (661 lbs) per line
- Dimensions:
- Length: 126mm (5")
- Width: 83.7mm (3 5/16")
- Height: 72mm (2 13/16")
The Lewmar DC1 Triple Rope Clutch (6-8mm) is a versatile and space-efficient solution for sailors who need to securely manage multiple lines with ease. Its rugged construction, innovative grip technology, and smooth operation make it a trusted choice for high-performance sailing applications.
Specifications
| Width (mm) | 83.7 |
| Length (mm) | 126 |
| Recommended line - Max Ø (mm) | 8 |
| Recommended line - Min Ø (mm) | 6 |
| Height (mm) | 72 |
| SWL (kg) | 300 |
| A (mm) | 27 |
| B (mm) | 29 |
| E (mm) | 26 |
| F (mm) | 79 |
| Weight (g) | 850 |
