Specifications for Lewmar DC2 Rope Clutch 10-12mm, Double
| Width (mm) | 68.5 |
| Length (mm) | 156 |
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 10 |
| Height (mm) | 88 |
| SWL (kg) | 700 |
| A (mm) | 26 |
| B (mm) | 32 |
| E (mm) | 30.5 |
| F (mm) | 107 |
| Weight (g) | 1216 |

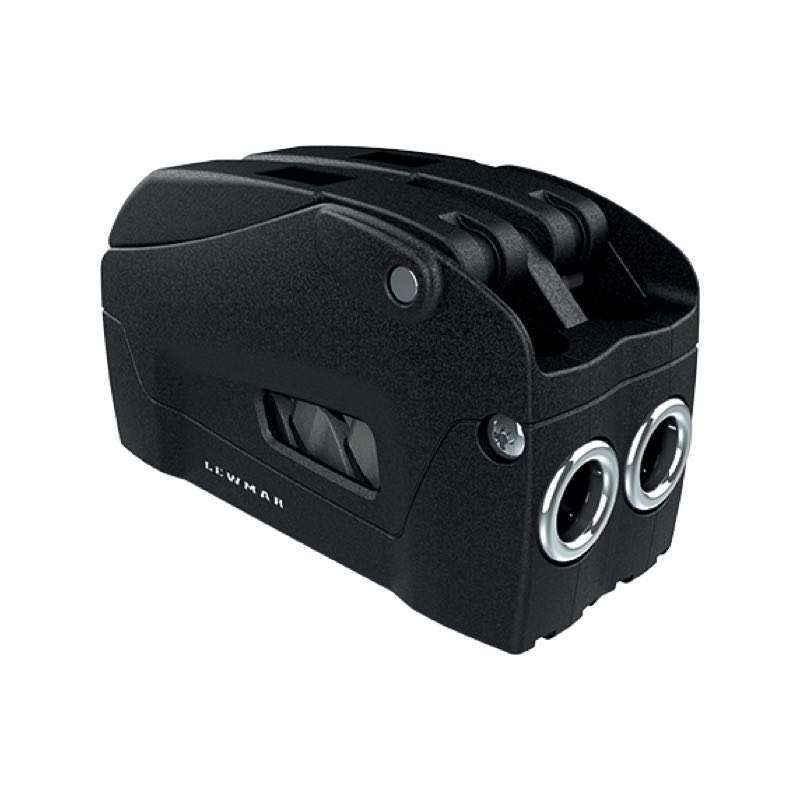

The Lewmar DC2 Double Rope Clutch (10-12mm) is a high-load, precision-engineered clutch designed for securely managing two lines within the 10mm to 12mm diameter range. Featuring Lewmar’s advanced Domino Cluster technology, this clutch provides exceptional holding power with reduced rope wear, making it ideal for performance sailing applications. With a Safe Working Load (SWL) of 700kg per line, it ensures secure, controlled line handling in high-load conditions.
Key Features:
- Domino Cluster Mechanism: Unlike traditional cam-based clutches, the DC2’s Domino Cluster system tilts and flexes the line rather than crushing it, providing maximum grip while preserving rope integrity.
- Dual-Line Configuration: Designed for efficient handling of two independent lines, making it ideal for halyards, reefing lines, and other essential control lines.
- Smooth & Controlled Release: The pull-back handle design, combined with Lewmar’s patented clutching system, enables gradual and precise line release, even under full load, ensuring enhanced safety and control.
- High-Strength & Durable Construction: Built with reinforced composite materials and stainless steel fairleads, this clutch is lightweight yet incredibly strong, delivering long-term performance in demanding conditions.
Specifications:
- Line Size Compatibility: 10mm to 12mm (3/8" to 7/16")
- Safe Working Load (SWL): 700kg (1543 lbs) per line
- Dimensions:
- Length: 154mm (6 1/16")
- Width: 68.5mm (2 11/16")
- Height: 88mm (3 7/16")
The Lewmar DC2 Double Rope Clutch (10-12mm) is an essential addition to any performance sailing setup, offering exceptional holding power, smooth operation, and durability. Whether used for halyards, sheets, or reefing lines, it provides confidence and reliability in high-load sailing conditions.
Specifications
| Width (mm) | 68.5 |
| Length (mm) | 156 |
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 10 |
| Height (mm) | 88 |
| SWL (kg) | 700 |
| A (mm) | 26 |
| B (mm) | 32 |
| E (mm) | 30.5 |
| F (mm) | 107 |
| Weight (g) | 1216 |
