Specifications for Lewmar DC2 Rope Clutch 8-10mm, Triple
| Width (mm) | 99 |
| Length (mm) | 156 |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 8 |
| Height (mm) | 88 |
| SWL (kg) | 500 |
| A (mm) | 26 |
| B (mm) | 32 |
| E (mm) | 30.5 |
| F (mm) | 107 |
| Weight (g) | 1674 |

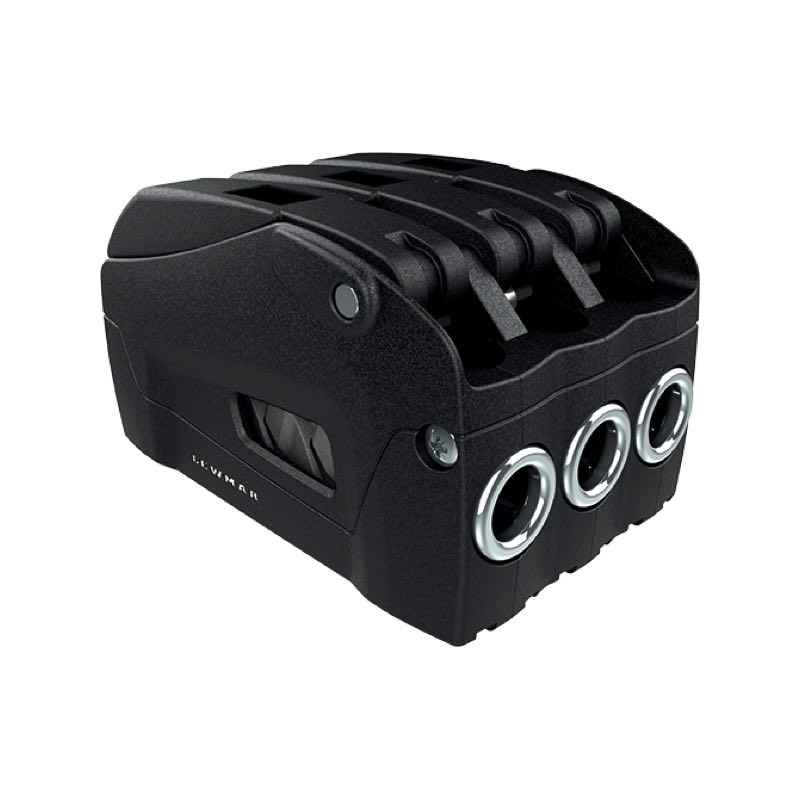

The Lewmar DC2 Triple Rope Clutch (8-10mm) is a high-performance, multi-line clutch designed for securely managing three high-load lines within the 8mm to 10mm diameter range. With a Safe Working Load (SWL) of 500kg per line, this clutch is ideal for performance yachts and offshore sailing, delivering exceptional holding power while reducing rope wear. Featuring Lewmar’s innovative Domino Cluster technology, it ensures maximum grip, smooth operation, and precise control, even under full load conditions.
Key Features:
- Domino Cluster Mechanism: Unlike traditional cam-based clutches, the DC2’s Domino Cluster system tilts and flexes the line rather than crushing it, providing superior holding power while preserving rope integrity.
- Triple-Line Management: Designed to securely handle three independent high-load lines, allowing for an efficient and organised deck layout, ideal for multi-function sailing applications.
- Smooth & Controlled Release: The pull-back handle design, combined with Lewmar’s patented clutching system, enables gradual and precise release, even under full load, ensuring greater control and safety.
- High-Strength & Durable Construction: Built with reinforced composite materials and stainless steel fairleads, this clutch is lightweight yet incredibly strong, ensuring long-term performance in demanding conditions.
Specifications:
- Line Size Compatibility: 8mm to 10mm (5/16" to 3/8")
- Safe Working Load (SWL): 500kg (1102 lbs) per line
- Dimensions:
- Length: 156mm (6 1/8")
- Width: 99mm (3 7/8")
- Height: 88mm (3 7/16")
The Lewmar DC2 Triple Rope Clutch (8-10mm) is a versatile and space-efficient solution for sailors who need to securely manage multiple lines with ease. Its rugged construction, advanced grip technology, and smooth operation make it a trusted choice for offshore racing and performance sailing.
Specifications
| Width (mm) | 99 |
| Length (mm) | 156 |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 8 |
| Height (mm) | 88 |
| SWL (kg) | 500 |
| A (mm) | 26 |
| B (mm) | 32 |
| E (mm) | 30.5 |
| F (mm) | 107 |
| Weight (g) | 1674 |
