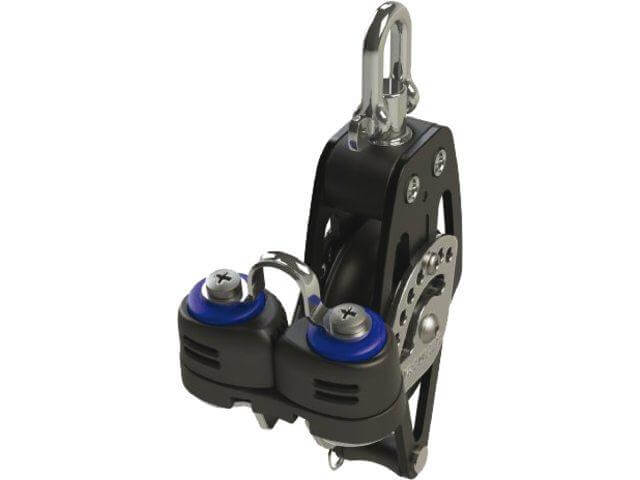

Years of design and manufacturing experience, combined with collaboration with boat builders, designers, and sailors, has resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the racing range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. Ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
Featuring:
- Strong aluminium side plates
- Central plain bearing for efficiency at high loads
- Side thrust Delrin ball bearings
- Head design inspired by Lewmar Racing Range, complete with grub screw swivel head locking mechanism
Specifications
| Bearing type | Ball bearing |
| Bearing material | Delrin® |
| Recommended line - Max Ø (mm) | 10 |
| Sheave Ø (mm) | 50 |
| Sideplate material | Aluminium |
| Ratchet | No |
| Sheave material | UV stabilised acetal |
| SWL (kg) | 800 |
| NBL (kg) | 1600 |
| Weight (g) | 320 |
