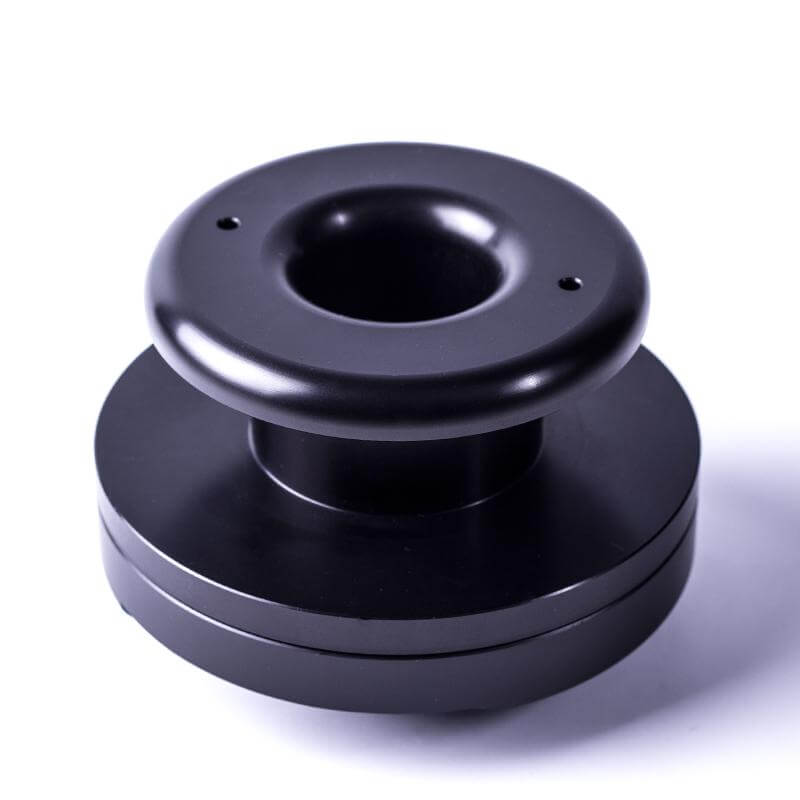

KOHLHOFF LOOP® Padeyes are through-deck fittings made of hard anodised aluminium. Both parts are screwed together to provide easy adjustment for different deck thicknesses. The 30C version is fully water proof with an Acetal dome cover encapsulating the dogbone and loop on the underside of the fitting. KOHLHOFF LOOP® Padeyes come in black as standard but are also available in silver on request. The Dyneema® loop is NOT supplied as standard and custom loops are also available on request.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Lower Ø (mm) | 120 |
| Upper Ø (mm) | 78 |
| Inside Ø (mm) | 30 |
| Style | Soft |
| Deck thickness Max (mm) | 40 |
| Deck thickness Min (mm) | 25 |
| SWL (kg) | 5000 |
| NBL (kg) | 10000 |
| Weight (g) | 440 |
