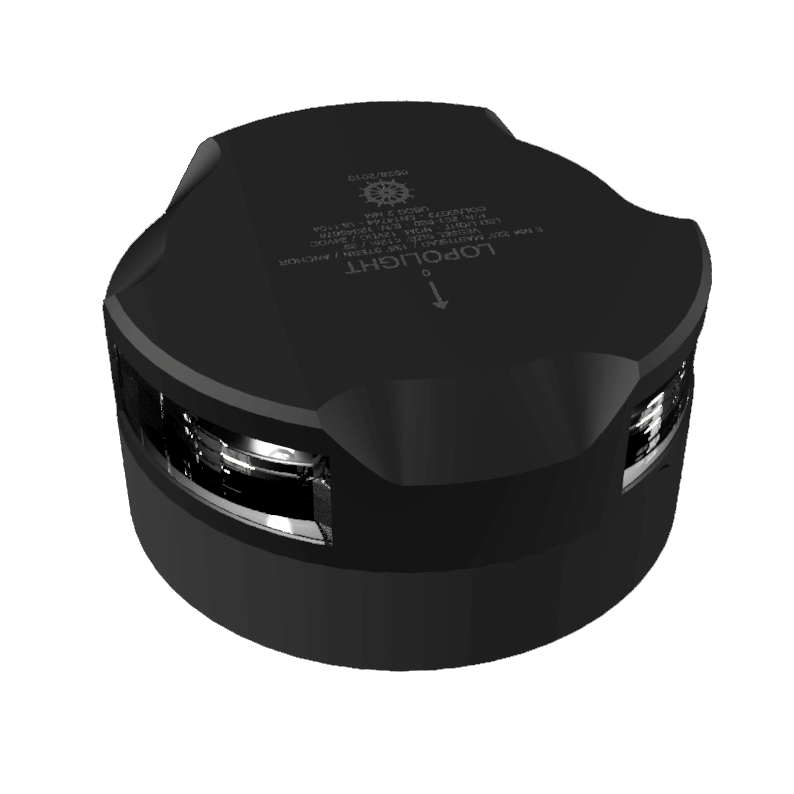

Horizontally mounted on HDPE base with 0,75m cable
Included in package:
1 Navigation light
precabled with 0.75 meter shielded marine grade cable
2 Mounting screws (M6 * 8 mm)
Installation guide
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Connection | 0.7m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Current draw (mA @ 12VDC) | 167 |
| Current draw (mA @ 24VDC) | 110 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Operating voltage (V) | 10-32 |
| Material | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 540 |
