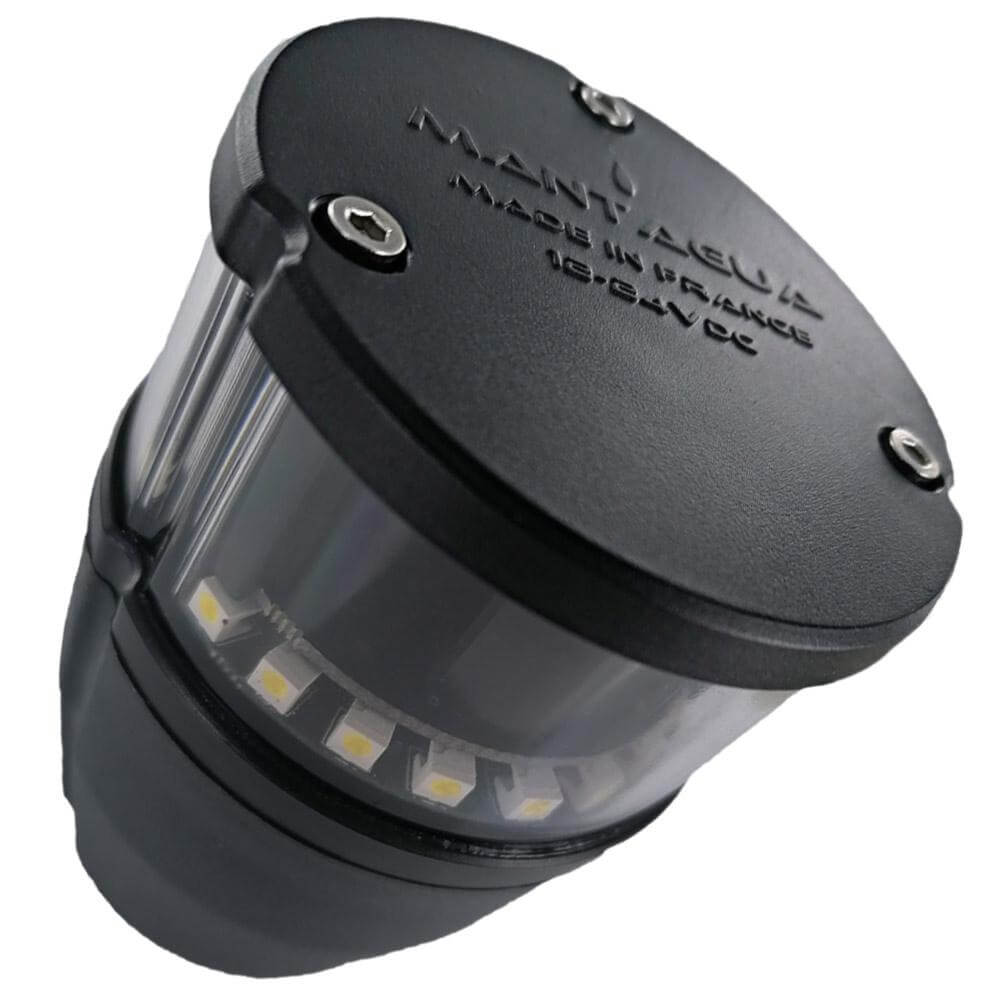

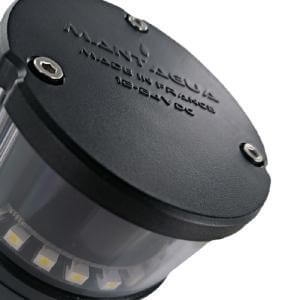

Mantagua NAVIPRO 2NM Anchor Light (White 360°) - Night & Day automatic switching
Specifications for Mantagua NAVIPRO 2NM Anchor Light (White 360°) - Night & Day automatic switching
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 2.76 |
| Outside Ø (mm) | 69 |
| Operating voltage (V) | 10-30 |
| Material | PC + ASA |
| Height (mm) | 95 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 170 |
| Certification | WHEELMARK 60427/A0 MED |
|
Mantagua Navipro - Installation Video
|
|
|
Mantagua CE Certificate.pdf
|
|
|
|
Navigation Lights Approval - NAVIPRO.pdf
WHEELMARK 60427/A0 MED Certificate of Approval
|
|
|
|
Page_NAVIPRO-98.pdf
|
|
|
|
Instructions_utilisateur_francais-anglais_et_declaration_conformite_03-12-20-13.pdf
|

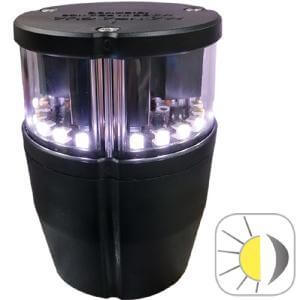

The anchor light emits 360° white light; with a luminous intensity of >5.4cd, from the LEDs, are visible for a minimum 2 nautical miles.
The Night & Day Anchor mode measures the light every 15 minutes and guarantees that the light goes ON only if necessary, and goes OFF automatically in the morning whilst you’re still asleep. Saving the always important battery power.
The NAVIPRO uses LED technology to prolong the lifespan, reaching 45,000 hours of usage; whilst being unaffected and not affecting nearby VHF or AIS systems. The polycarbonate (PC) and acrylonitrile styrene acrylate (ASA) outer shell is UV-resistant, protecting against long-term exposure to UV damage. The light weight and compact design of these lights are also waterproof, with a rating of IP67 making them dust proof and able to withstand 30 minutes under 1 meter of water. They comply to the COLREGS (1972), SOLAS (1974) and European Directive 2014/90/EU, with confirmation by the certification of WHEELMARK 60427/A0 MED approval.
Summary of Features:
Range of 2 nautical miles
Compact and light weight
UV-resistant
Waterproof IP67
Low power consumption
Regulated 10-30 VDC
Does not disturb AIS or VHF
Complies to European Directive 2014/90/EU
Wheelmark 60427/A0 certified.
Specifications
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 2.76 |
| Outside Ø (mm) | 69 |
| Operating voltage (V) | 10-30 |
| Material | PC + ASA |
| Height (mm) | 95 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 170 |
| Certification | WHEELMARK 60427/A0 MED |
