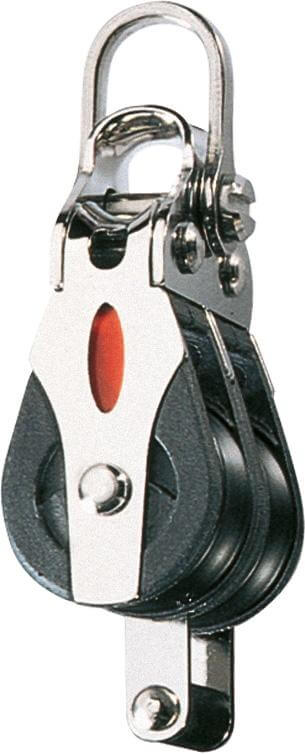

Ronstan's Series 20 Ball Bearing Utility Blocks are a range of lightweight blocks with high static and dynamic load capacities and versatile head fittings. They feature precision-moulded, UV-stabilised acetal sheaves running on stainless steel ball bearings to give high performance and low friction. They are ideal for Dinghy control lines and vangs, cunninghams and traveller controls. Double and triple blocks are supplied with a shackle and have a 2 way head that can be fixed at 0° or 90°. They allow the creation of powerful purchase systems.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Bearing type | Ball bearing |
| Bearing material | Stainless steel |
| Recommended line - Max Ø (mm) | 6 |
| Sheave Ø (mm) | 20 |
| Sideplate material | Nylon |
| Ratchet | No |
| Sheave material | UV stabilised acetal |
| SWL (kg) | 350 |
| NBL (kg) | 700 |
| Weight (g) | 44 |
