Materials:
Aluminium alloy
Product information:

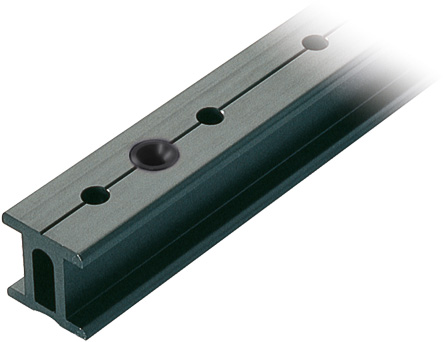

TRACK FASTENINGS - To suit 6mm (1/4") countersunk fasteners at 100mm (3 15/16") centres.
STOP HOLES - 50mm (2") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
MINIMUM CURVE RADIUS
For 76mm (3") car. Min horizontal 'A' curve radius = 500mm (20"). Min horizontal 'B' curve radius = 500mm (20").
For 157mm (6 3/16") car. Min horizontal 'A' curve radius = 500mm (20"). Min horizontal 'B' curve radius = not suitable.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 32 |
| Total length (mm) | 1996 |
| Weight (g) | 2410 |
