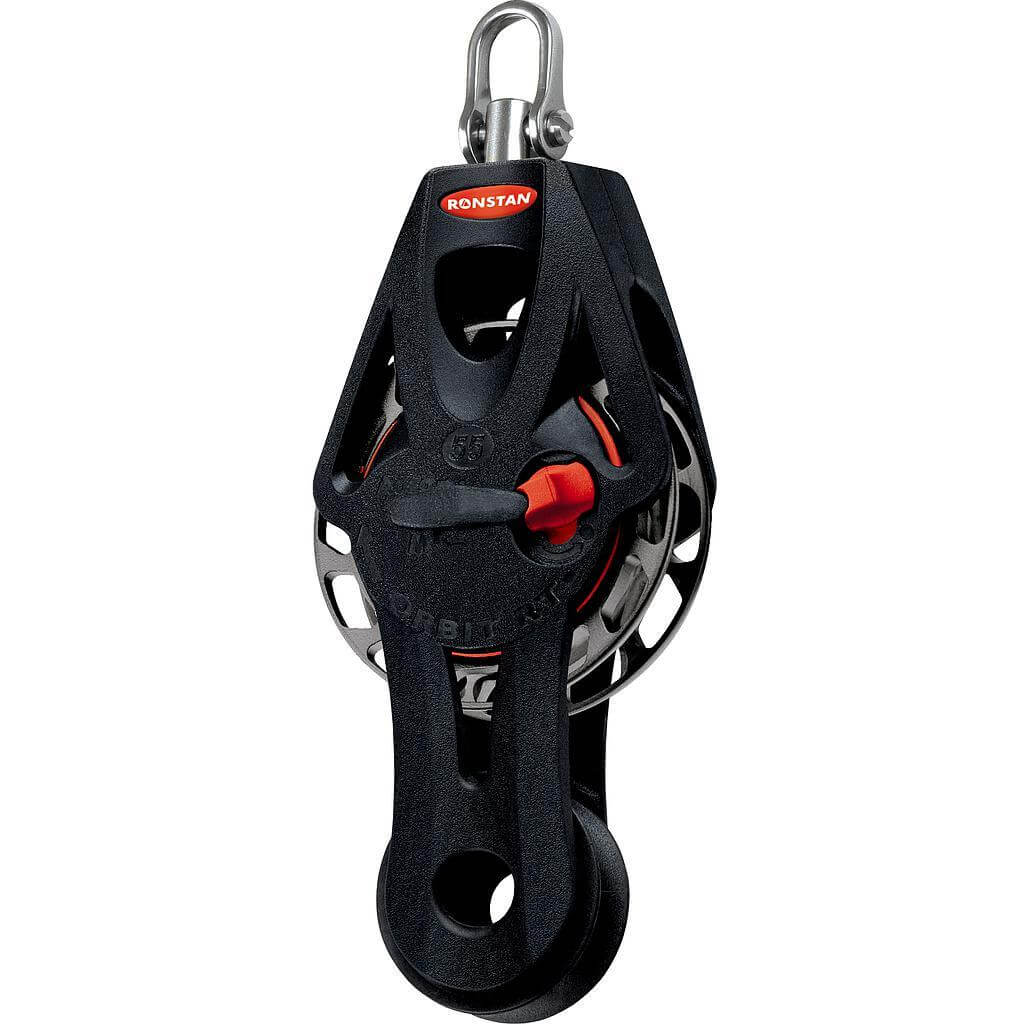

Ronstan Series 55 Ball Bearing Ratchet Orbit Block™ - becket, fiddle, auto & manual, swivel shackle head

https://www.upffront.com/web/image/product.template/11952/image_1920?unique=018bbc8

111.51 € 111.51 EUR 131.20 €

110.25 €

15% Off

Available on request

spring sale upffront sailing systems

04
Days
:
16
Hours
:
56
Mins
:
23
Secs
  • Brand
  • Range
  • Recommended line - Max Ø (mm)
  • Recommended Boat size - Max (ft)
  • Sheave Ø (mm)
  • Number of sheaves
  • Mounting
  • Cleat
  • Becket
  • Swivel
  • Ratchet
  • SWL (kg)
  • NBL (kg)
  • Weight (g)

This combination does not exist.

Product Image

Ronstan Series 55 Ball Bearing Ratchet Orbit Block™ - becket, fiddle, auto & manual, swivel shackle head

131.20 € 111.51 €
15% Off
SKU:
N/A
Brand: Ronstan

30-day money-back

 14-day returns

 Express shipping available

Share :

Quite simply, Ronstan Ratchet Orbit Blocks™ have the highest holding power available. The sophisticated NC-machined sheave features Generation 2 of our patented sheave cross-hole geometry. Its holding power is up to 21:1, almost double that of our nearest competitior. The unique sheave design has 12 gripping faces which directly resist loaded line movement. Traditional designes have only 8 faces with an angled resistance to line movement. Our Generation 2 design has straight resistance faces which both distribute the load and minimise rope wear. These faces are offset from the radial line, to draw the rope down into the gripping area when under load. Now you can enjoy the flexibility of setting up your ratchet blocks to suit yourself. Ronstan is the only company that offers a ratchet block with both auto and manual engagement modes*. In the auto mode of the ratchet mechanism engages when load is applied, but switches off when it's released. This lets the sheet run out smoothly and freely-great for rapid easing of the sheet and for gybing asymmetric spinnakers. In manual mode, the ratchet mechanism can be switched on or off as required. This is the preferred mainsheet set-up for may top sailors.

Specifications

Recommended line - Max Ø (mm) 10
Recommended Boat size - Max (ft) 30
Sheave Ø (mm) 55
Ratchet Auto, Manual
SWL (kg) 750
NBL (kg) 1500
Weight (g) 112
