Features:
- The highest strength-to-weight ratio
- Minimal friction loss, especially when working at high loads
- Totally reliable and trouble free performance
- Simplicity of design and construction to facilitate maintenance and servicing
- Elegant, functional styling and finish.
Applications:
- Primary mainsheet, halyard and spinnaker systems on boats to 12m (40ft)
- Secondary mainsheet, vang systems on boats to 14m (46ft)
- Standard and running backstay systems on boats to 10m (33ft)
- General control line and lead block applications on larger yachts
Materials:
- Fully machined Alloy cheek plates
- Alloy sheaves with captive ball races
- Torlon® needle rollers
- Carbon black Acetal ball bearings
Product information:

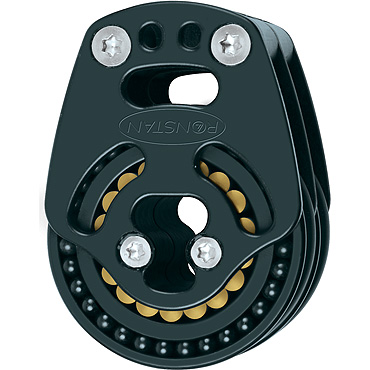

- Orbit blocks™ are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon® ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 12 |
| Sheave Ø (mm) | 60 |
| Ratchet | No |
| SWL (kg) | 2250 |
| NBL (kg) | 4500 |
| Weight (g) | 281 |
