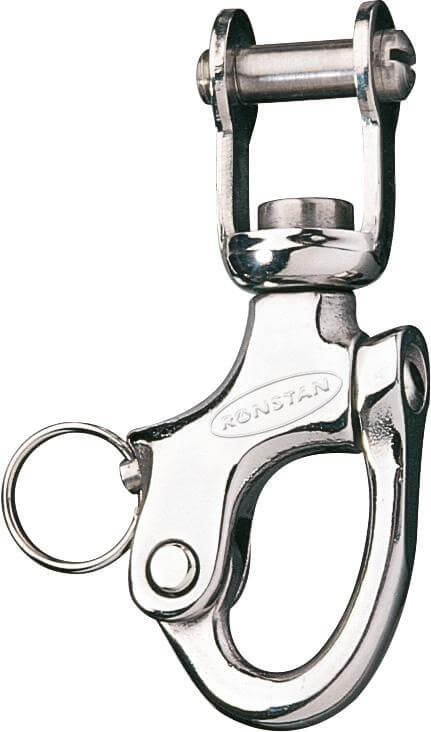

Ronstan Snap Shackle Fork Bale 95mm
- Swivel head.
- Heavy duty plunger springs and precision components ensure dependable service.
- Body and hasp profiles are designed for easy clearance of lines and fittings when released.
- High strength-to-weight ratio.
- Stainless steel is used throughout for excellent corrosion resistance.
- Split ring on plunger pin is spot welded for security.
- A lanyard can be attached to the plunger pin for easy opening.
- Grade 15-5PH investment cast stainless steel body and hasp.
- Grade 316 stainless steel plunger pin and spring.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Style | Swivel Clevis Bail |
| Material | Stainless Steel |
| Material Grade | 15-5PH SS |
| SWL (kg) | 1100 |
| NBL (kg) | 2200 |
| A (mm) | 16 |
| B (mm) | 7.9 |
| C (mm) | 95 |
| D (mm) | 17.5 |
| Weight (g) | 120 |
