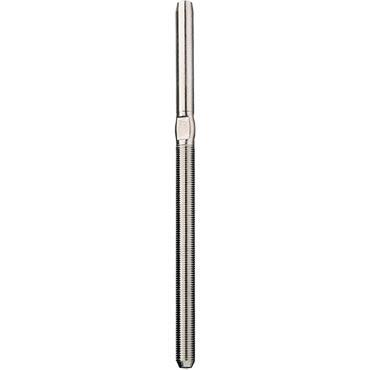

Specifications for Ronstan T10 Swg Terminal, 12mm Wire, 3/4" Thread
| Suits Ronstan turnbuckle | RF1480-12 |
| Thread size | 3/4" UNF |
| Cable Ø (mm) | 12 |
| A (mm) | 12.2 |
| B (mm) | 140.4 |
| C (mm) | 386 |
| D (mm) | 205 |
| E (mm) | 21.4 |
| Weight (g) | 755 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Features:
B.L.=12140kg (26700lb)
Applications:
For wire end termination to suit metric wire
Materials:
Grade 316 stainless steel
Product information:
Threaded swage terminals up to and including 7/8" UNF have rolled right hand threads to maximise strength.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Suits Ronstan turnbuckle | RF1480-12 |
| Thread size | 3/4" UNF |
| Cable Ø (mm) | 12 |
| A (mm) | 12.2 |
| B (mm) | 140.4 |
| C (mm) | 386 |
| D (mm) | 205 |
| E (mm) | 21.4 |
| Weight (g) | 755 |
