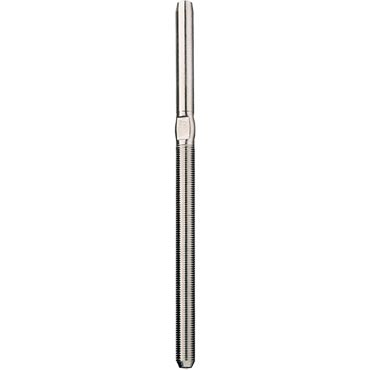

Specifications for Ronstan Turnbuckle Swage Terminal - 4mm, 5/16" UNF
| Suits Ronstan turnbuckle | RF1480-05, RF1481-05 |
| Thread size | 5/16" UNF |
| Cable Ø (mm) | 4 |
| A (mm) | 6 |
| B (mm) | 45.5 |
| C (mm) | 153 |
| D (mm) | 89 |
| E (mm) | 7.5 |
| Weight (g) | 44 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Features:
B.L.=1780kg (3910lb)
Applications:
For wire end termination to suit metric wire
Materials:
Grade 316 stainless steel
Product information:
Threaded swage terminals up to and including 7/8" UNF have rolled right hand threads to maximise strength.
