Specifications for Ropeye PRO Loop 60 Padeye
| Material | Carbon or Glass fibre |
| B (mm) | 60 or 80 or 100 |
| Weight (g) | 30 or 32 or 33 |
| Rope Ø (mm) | 6 |
| SWL (kg) | 1100 |
| NBL (kg) | 2200 |
| A (mm) | 6 |
| C (mm) | 60 |
Ropeye PRO Loop 60 Padeye – High-Strength Multi-Directional Soft Attachment
NOTE: This product is sold as the Loop/pad only - TDP deck bushings and and SLR rope thimbles must be purchased separately

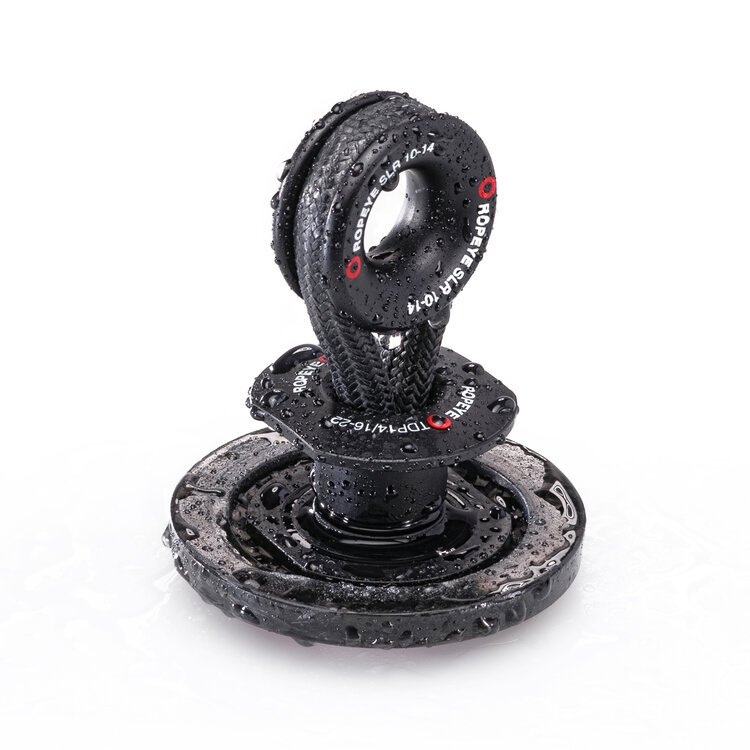

The Ropeye PRO Loop 60 Padeye is a high-performance soft attachment point designed for through-deck installations, offering a lightweight yet ultra-strong alternative to traditional padeyes. Its curved base evenly distributes loads, allowing it to maintain its full safe working load in all directions. When used with the Ropeye Double TDP deck bushing and Ropeye SLR rope thimble, it creates an efficient, low-profile, and durable through-deck solution.
Available in three loop lengths – 60mm, 80mm, and 100mm – the Ropeye PRO Loop 60 is offered with either a carbon or glass fibre base, ensuring flexibility to meet specific performance and durability requirements.
Key Features:
✔ Multi-Directional Load Handling – Withstands forces from all angles without reducing the safe working load.
✔ Curved Base for Even Load Distribution – Provides maximum strength and longevity under extreme loads.
✔ Designed for Through-Deck Applications – Must be used with a Ropeye Double TDP deck bushing to reinforce the deck and protect the loop.
✔ Optimised for SLR Rope Thimbles – The use of a Ropeye SLR thimble is recommended to prevent premature wear and extend service life.
✔ Customisable Options – Available in 60mm, 80mm, and 100mm loop lengths, with a choice of carbon or glass fibre base.
✔ Ultra-Strong & Lightweight – Engineered for demanding loads while keeping weight to a minimum.
Applications:
- High-performance soft padeye replacement for extreme load applications.
- Ideal for securing blocks, control lines, and soft rigging attachments.
- Used in racing yachts, offshore cruising, and lightweight performance setups.
Installation:
- Drill the installation hole to the correct size.
- Clean the area with acetone to ensure a strong bond.
- Insert and tighten the Ropeye Double TDP deck bushing to reinforce the deck and guide the loop.
- Apply adhesive and press the Ropeye PRO Loop 60 into place.
- Attach the Ropeye SLR rope thimble to the loop for added durability.
- Wait 24 hours before applying any load to allow for full curing.
Warranty: The Ropeye PRO Loop 60 Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
Specifications
| Material | Carbon or Glass fibre |
| B (mm) | 60 or 80 or 100 |
| Weight (g) | 30 or 32 or 33 |
| Rope Ø (mm) | 6 |
| SWL (kg) | 1100 |
| NBL (kg) | 2200 |
| A (mm) | 6 |
| C (mm) | 60 |
