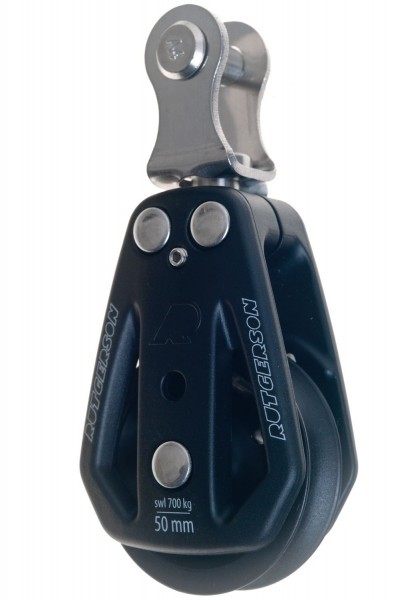

Rutgerson block 60mm, Sliding Bearing, Single Sheave, Movable Toggle, 14mm Fork Width, 8mm Pin
SKU:
N/A
Brand:
Rutgerson
Single-disc plain bearing blocks with 50mm, 60mm or 80mm disc diameter. The connection is made by a fixed or movable clevis. These blocks are used by many French mast manufacturers (Sparcraft, Z-Spar) and shipyards (Jeanneau, Bénetau and Dufour) for halyard deflection at the mast base or deck ring. Sheave-Ø Fork width Pin-Ø Working load Rope-Ø Weight 50mm 12mm 6mm 700kg 4 - 12mm 124g 50mm 14mm 8mm 700kg 4 - 12mm 130g 60mm 12mm 6mm 850kg 6 - 14mm 210g 60mm 14mm 8mm 850kg 6 - 14mm 270g 80mm 14mm 8mm 1430kg 10 - 16mm 424g
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Bearing type | - |
| Recommended line - Max Ø (mm) | - |
| Sheave Ø (mm) | - |
| Ratchet | No |
