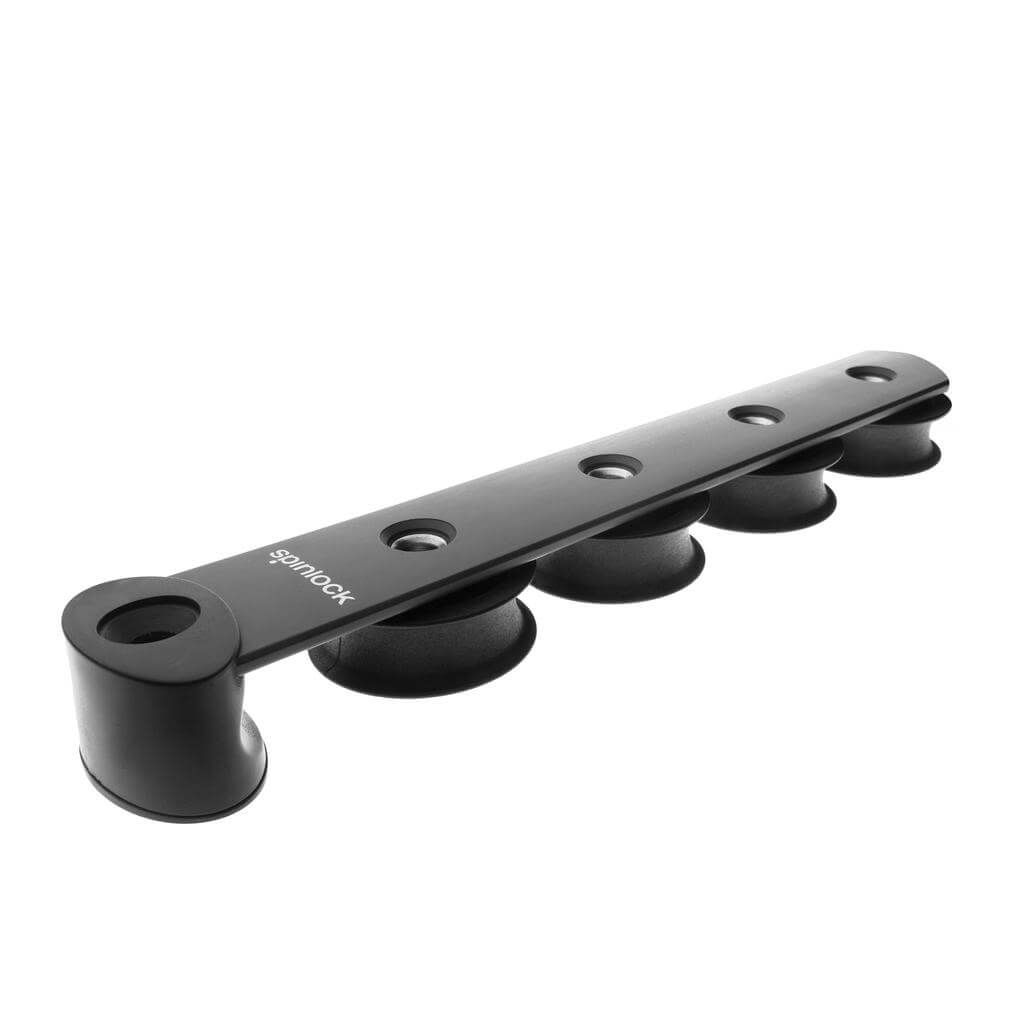

Spinlock 38mm organisers feature:
Minimal overall length
Efficient bearings surface reduces winch effort and increases halyard life
Integral end fairings for safe side loading
Asymmetric version reduces deck footprint and saves weight
Can 'stack' for limited deck area or adding extra capacity.
Vari-camber feature: Designed to follow the curve of the deck when fitted
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 38 |
| Recommended line - Max Ø (mm) | 12 |
| Total height (mm) | 26 |
| Fixing hole spacing (mm) | 43 |
| Total length (mm) | 202 |
| Sheave Ø (mm) | 38 |
| Mounting fasteners | M6 CSK Head (not supplied) |
| Sideplate material | Composite |
| Sheave material | Composite |
| SWL (kg) | 600 |
| NBL (kg) | 1200 |
| Weight (g) | 170 |
