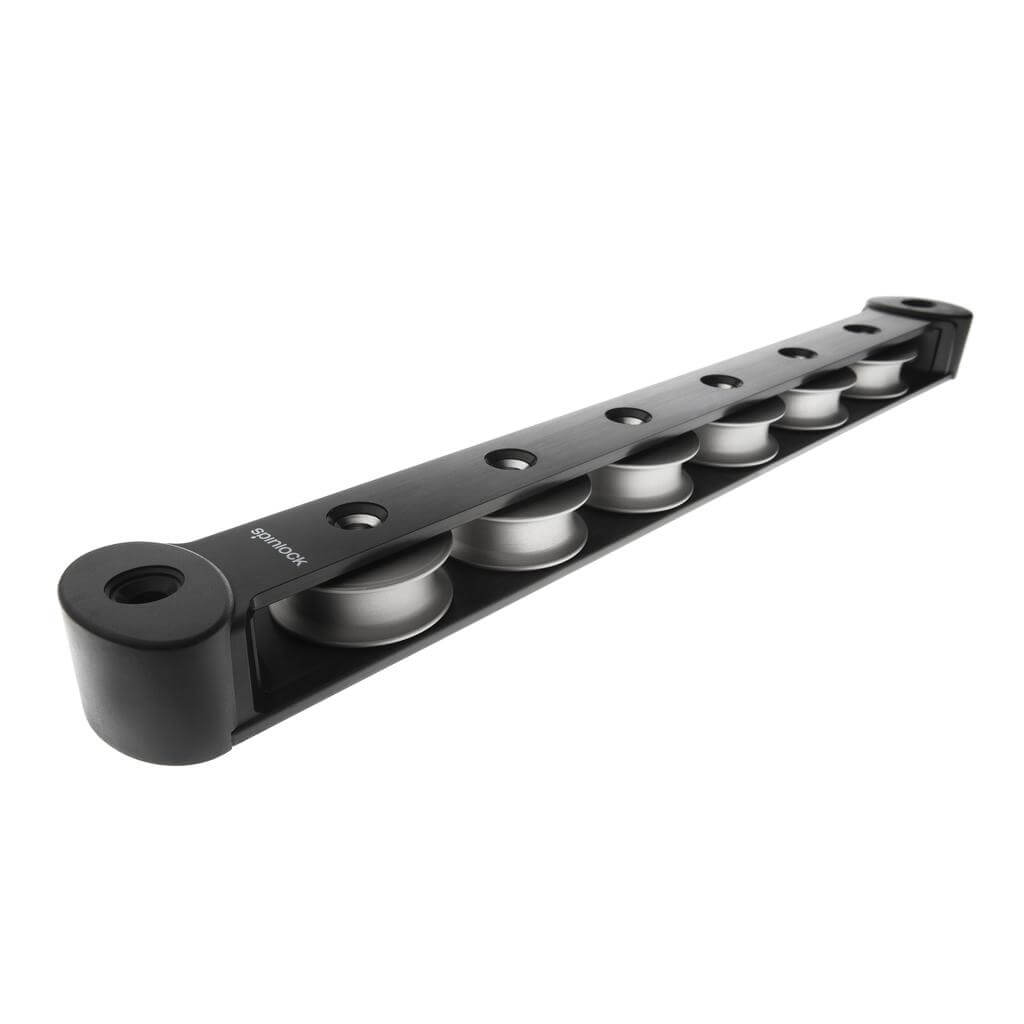

TC50 organisers are specially developed for higher loads:
Minimal overall length
Efficient bearings surface reduces winch effort and increases halyard life
Integral end fairings for safe side loading
Can be used as an Aft Organiser to divert lines from a clutch to a winch
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 52 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 33 |
| Fixing hole spacing (mm) | 56 |
| Total length (mm) | 425 |
| Sheave Ø (mm) | 50 |
| Mounting fasteners | M8 CSK Head (supplied) |
| Sideplate material | Composite |
| Sheave material | Alloy |
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Weight (g) | 1250 |
