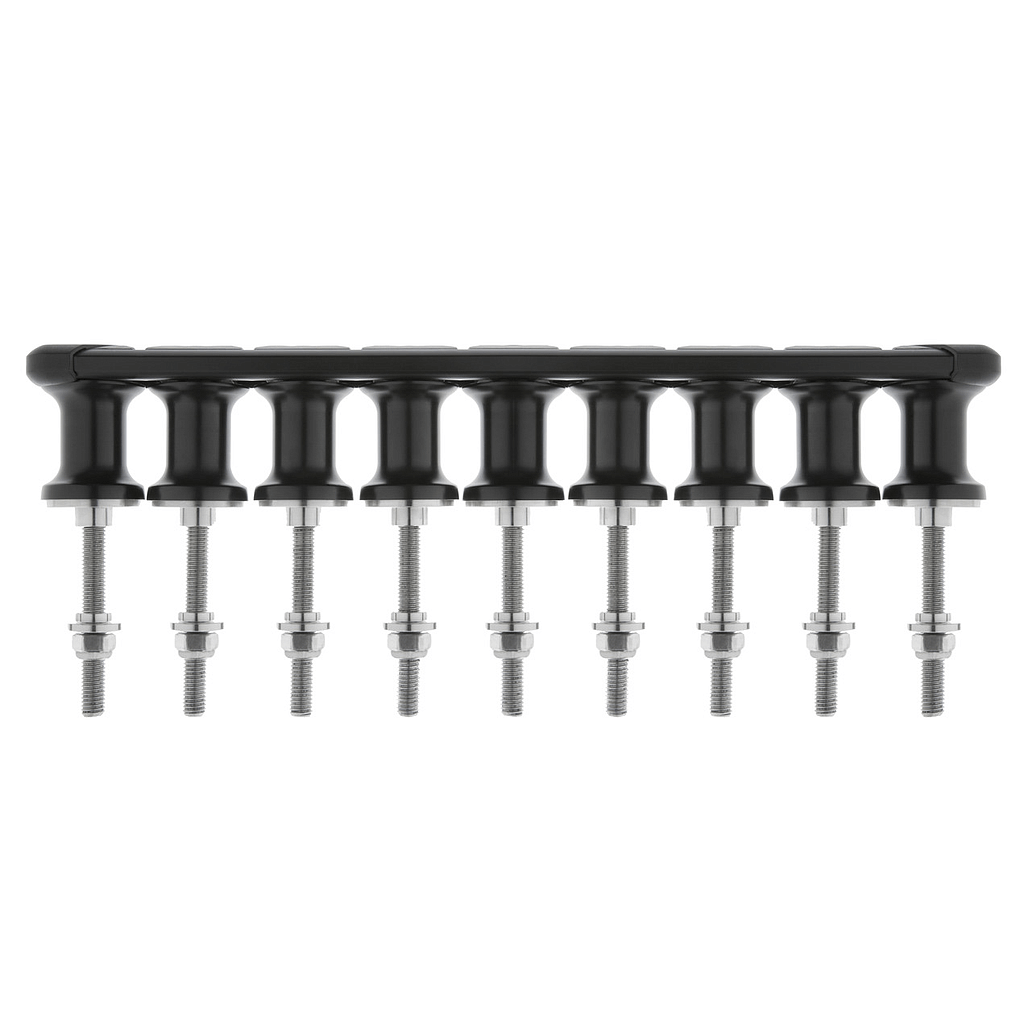

Spinlock TSR Aft Organiser, 9 x 30mm Sheaves

1,678.99 € 1,595.04 €
5% Off
SKU:
N/A
Brand: Spinlock

30-day money-back

 14-day returns

 Express shipping available

Share :

Aft Organiser for diverting lines from clutches and jammers

  • 30mm sheaves for diverting large deflection angles and large diameter lines

  • All rotating sheaves with plain bearings

  • Fixed Sheaves can be inserted in the organiser to further increase deflection loads

  • Alloy top rails

  • Modular design and assembly - Sheaves can be moved to any spacing

  • Tulip shaped design reduces friction from vertical defection

  • Low profile design

  • Simple inserting and removal of endless lines

  • Central shaft designed to spread load through laminate

Specifications

Total width (mm) 41
Recommended line - Max Ø (mm) 15
Total height (mm) 52
Fixing hole spacing (mm) 44
Total length (mm) 392
Sheave Ø (mm) 29
Mounting fasteners M10 CSK Head (supplied)
Sideplate material Alloy
Sheave material Alloy
SWL (kg) 2500
NBL (kg) 5000
Weight (g) 2305
