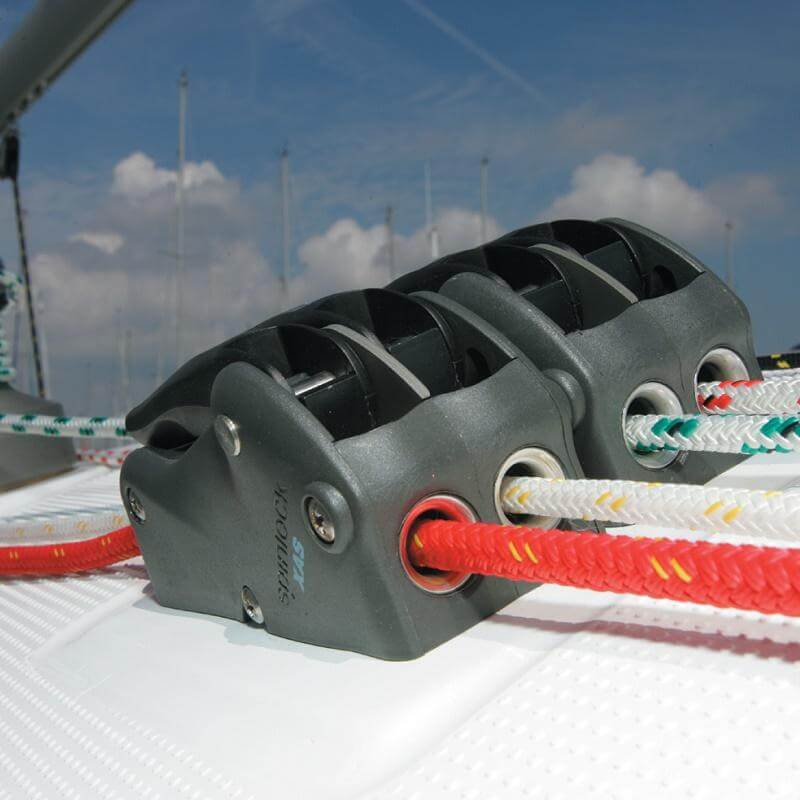

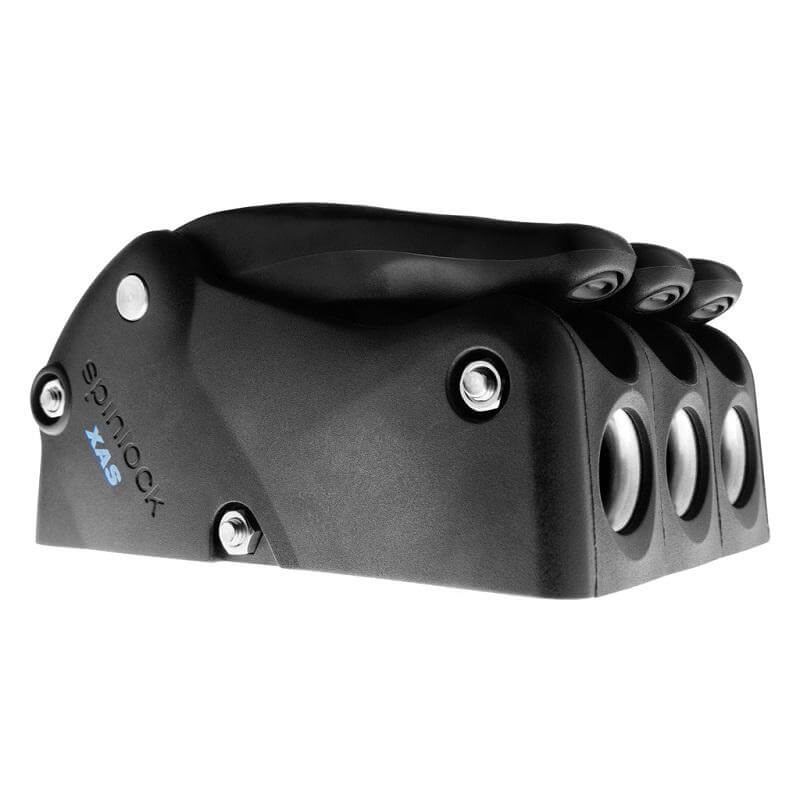

The XAS0408-3 is a triple clutch version of Spinlock's XAS Clutch - a multi-role clutch with excellent performance across a wide rope range. The XAS0408 gives optimised clutching and holding power on 4-8mm lines and is perfect for racing yachts up to to 27’ and cruising yachts up to 35’. The clutch is line-friendly with easy-access handle for effortless release. It has replaceable parts, is easy to upgrade and maintain and is supplied with handle labels. Installation requires 6 x M6 CSK fasteners (not supplied).
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 91 |
| Recommended line - Max Ø (mm) | 8 |
| Recommended line - Min Ø (mm) | 4 |
| Total height (mm) | 69 |
| Total length (mm) | 134 |
| Colour | Black |
| Mounting fasteners | 6 x M6 CSK Head (not supplied) |
| Line entry height (mm) | 18 |
| SWL (kg) | 450 |
| Warranty (yrs) | 5 |
| Weight (g) | 680 |
