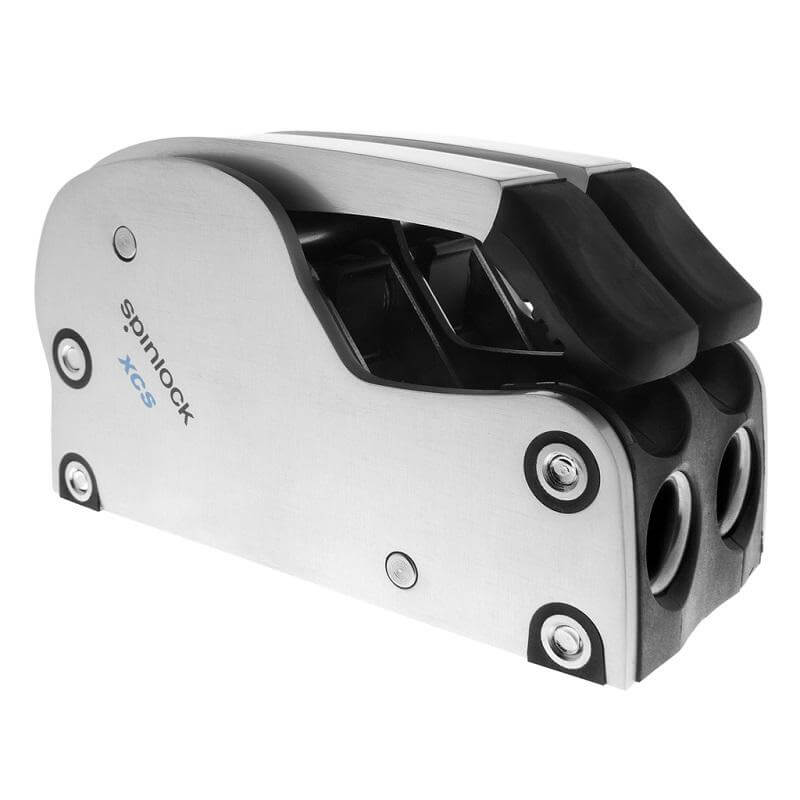

The XCS0814-2S is a double clutch version of Spinlock's XCS Clutch - a multi-role clutch with excellent performance across a wide rope range. It gives optimised clutching and holding power on 8-14mm lines with aluminium sides for sustained higher load operation and a silver polished alloy finish. Features include extruded alloy handle with soft end grip, secure handle locking in open and closed position and easy access to fasteners. Ceramic coated Cam and Base are available for consistent holding & performance on modern lines. The clutch has replaceable parts, iis easy to maintain and is supplied with handle labels. Installation requires 4 x M8 CSK fasteners (not supplied).
Specifications
| Total width (mm) | 66 |
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Total height (mm) | 85 |
| Total length (mm) | 156 |
| Colour | Silver |
| Mounting fasteners | 4 x M8 CSK Head (not supplied) |
| Line entry height (mm) | 22 |
| SWL (kg) | 1200 |
| Warranty (yrs) | 5 |
| Weight (g) | 1130 |
