SPINLOCK | XTS Clutch | Servicing
|

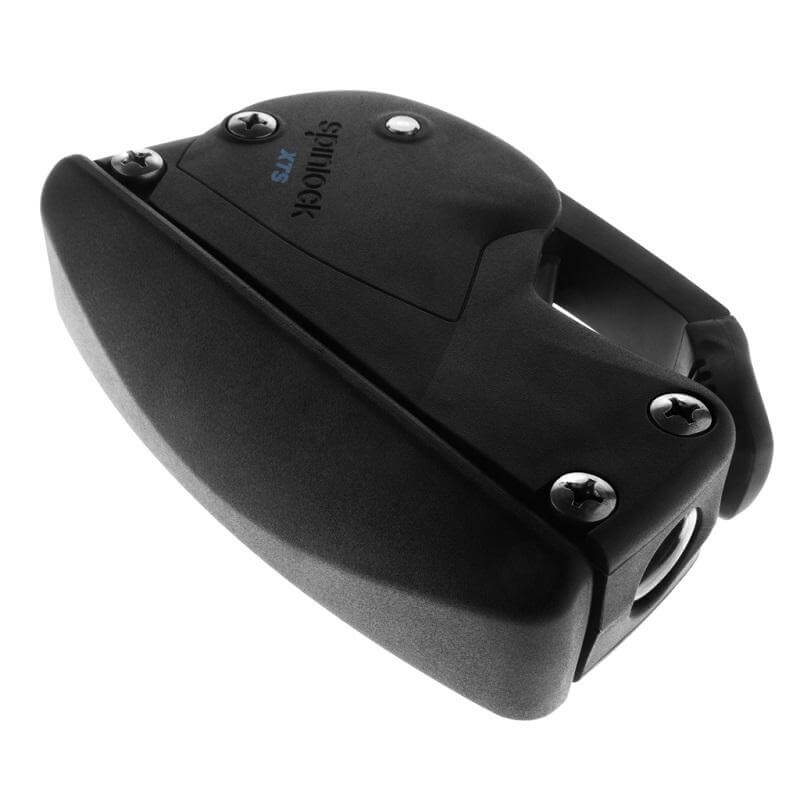

The XTS0610-HP is a port side-mounted version of Spinlock's XTS Clutch is a multi-role clutch with reliable all round performance on smaller diameter lines. It gives optimised clutching and holding power on 6-10mm lines for mid to high load operation. Features include extruded alloy handle with soft end grip, secure handle locking in open and closed position and easy access to fasteners. Ceramic coated Cam and Base are available for consistent holding & performance on modern lines. The clutch has replaceable parts, iis easy to maintain and is supplied with handle labels. Installation requires 4 x M6 CSK fasteners (supplied).
Specifications
| Total width (mm) | 39 |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Total height (mm) | 110 |
| Total length (mm) | 156 |
| Colour | Black |
| Mounting fasteners | 2 x M8 CSK Head (not supplied) |
| Line entry height (mm) | 22 |
| SWL (kg) | 700 |
| Warranty (yrs) | 5 |
| Weight (g) | 745 |
