Specifications for Tylaska T5S standard bail snap shackle
| Recommended Boat size - Max (ft) | 30 |
| Recommended Boat size - Min (ft) | 20 |
| Style | Swivel Bail (Small) |
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| SWL (kg) | 1130 |
| NBL (kg) | 2270 |
| A (mm) | 13.5 |
| B (mm) | 12.7 |
| C (mm) | 76.7 |
| Weight (g) | 61 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

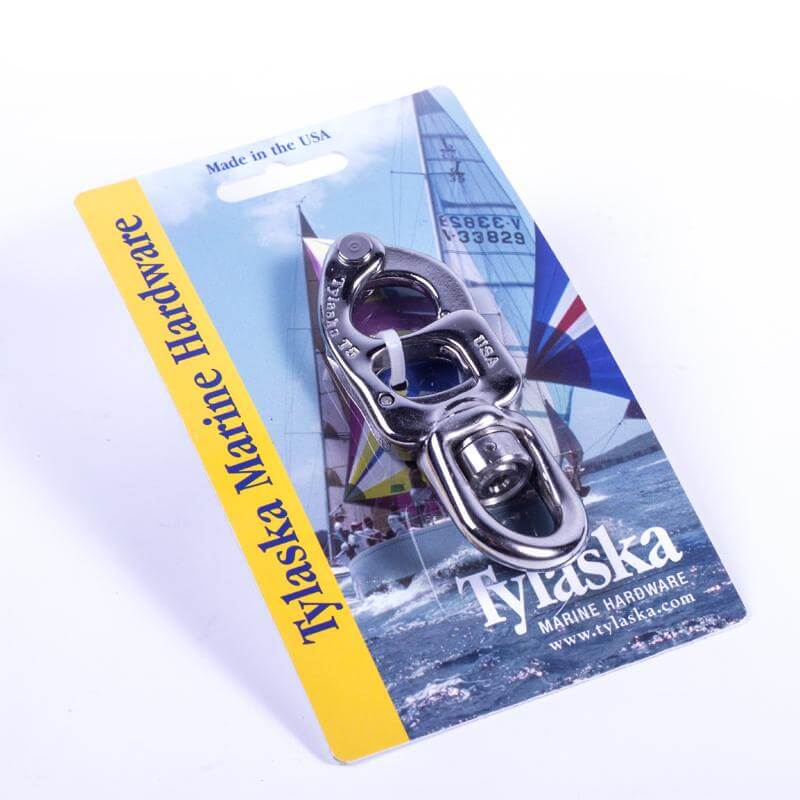

Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a SWL of 1,136kg and weigh just 59g in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended Boat size - Max (ft) | 30 |
| Recommended Boat size - Min (ft) | 20 |
| Style | Swivel Bail (Small) |
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| SWL (kg) | 1130 |
| NBL (kg) | 2270 |
| A (mm) | 13.5 |
| B (mm) | 12.7 |
| C (mm) | 76.7 |
| Weight (g) | 61 |
