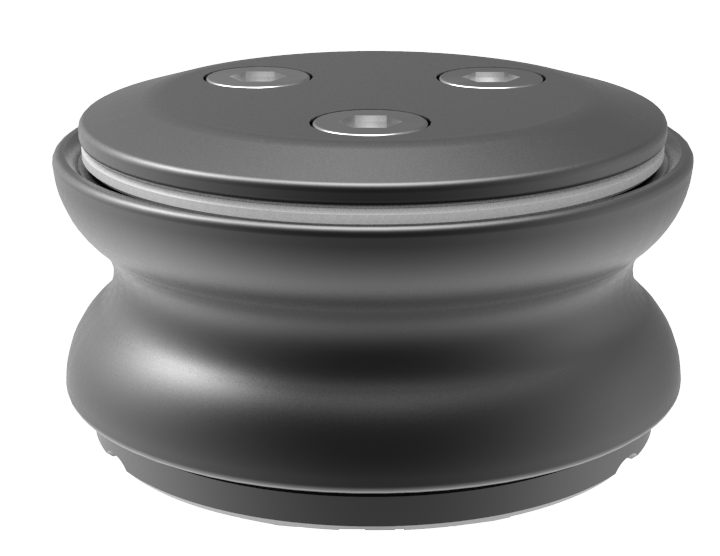

Specifications for UBI Maior Cross Over CO100
| Recommended line - Max Ø (mm) | 40 |
| Sheave Ø (mm) | 100 |
| Material Grade | 6082-T6 |
| Mounting fasteners | 4 x M8 (supplied) |
| Height (mm) | 50 |
| Sheave material | Delrin® |
| SWL (kg) | 5200 |
| NBL (kg) | 10400 |
| A (mm) | 50 |
| B (mm) | 43 |
| C (mm) | 20 |
| D (mm) | 100 |
| E (mm) | 44 |
| Weight (g) | 450 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

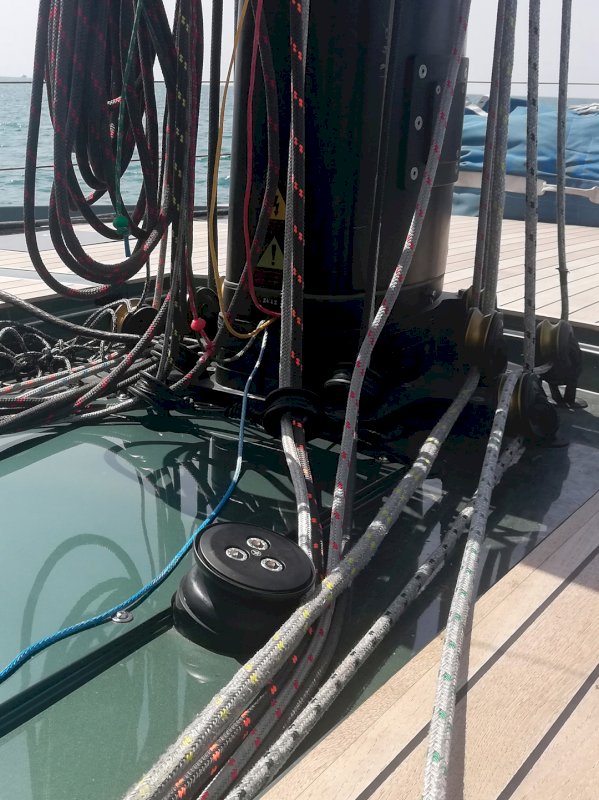

Cross Over blocks (CO) are perfect for installation behind the stopper to deflect the line onto the opposite winch without creating a corner, leaving the stopper or using the base of the winch as a cross over. Made from ALUMINUM alloy 6082T6 with a DELRIN sheave and bearings, these blocks come with a clamping plate.
Supplied with screws.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 40 |
| Sheave Ø (mm) | 100 |
| Material Grade | 6082-T6 |
| Mounting fasteners | 4 x M8 (supplied) |
| Height (mm) | 50 |
| Sheave material | Delrin® |
| SWL (kg) | 5200 |
| NBL (kg) | 10400 |
| A (mm) | 50 |
| B (mm) | 43 |
| C (mm) | 20 |
| D (mm) | 100 |
| E (mm) | 44 |
| Weight (g) | 450 |
