Specifications for Wichard D-Allen Key Pin Shackle Dia.12
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 12 |
| SWL (kg) | 2080 |
| NBL (kg) | 6000 |
| A (mm) | 39 |
| B (mm) | 24 |
| C (mm) | 12 |
| D (mm) | 24 |
| E (mm) | 10 |
| F (mm) | 73 |
| G (mm) | 49 |
| Weight (g) | 187 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

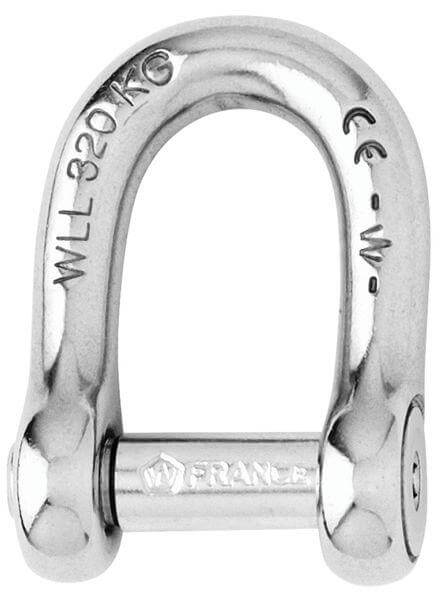

Self-locking shackle with allen head pin D forged in grade 316L stainless steel
The pin is locked into one of the indentations
The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
Ideal to link chain and anchor
On the halyard, avoids to damage the sails
To be used when the clutter is reduced
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 12 |
| SWL (kg) | 2080 |
| NBL (kg) | 6000 |
| A (mm) | 39 |
| B (mm) | 24 |
| C (mm) | 12 |
| D (mm) | 24 |
| E (mm) | 10 |
| F (mm) | 73 |
| G (mm) | 49 |
| Weight (g) | 187 |
