Wichard D shackle - Dia 10 mm

49.19 € 46.73 €
5% Off
SKU:
N/A
Brand: Wichard

30-day money-back

 14-day returns

 Express shipping available

Share :

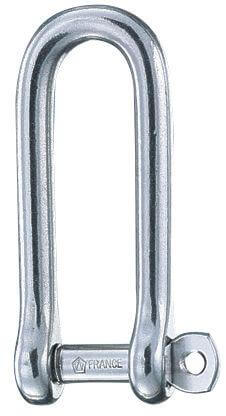

Captive pin long "D" shackle forged in grade 316L stainless steel

The pin is connected to the body at all times even when opened

The pin is locked into one of the indentations

No risks of loose due to vibrations

Outstanding working and breaking loads


Applications

Standard applications of shackle requiring more length

Attachment applications: blocks, head …

Specifications

Material Stainless Steel
Material Grade AISI 316L
Pin Ø (mm) 11
SWL (kg) 1520
NBL (kg) 5200
A (mm) 78
B (mm) 20
C (mm) 11
D (mm) 21
E (mm) 10
F (mm) 103
G (mm) 54
Weight (g) 176
