Wichard D shackle - Dia 6 mm - large size

https://www.upffront.com/web/image/product.template/29735/image_1920?unique=01008a2

23.00 € 23.0 EUR 23.00 €

19.33 €

0% Off

Available on request

spring sale upffront sailing systems

04
Days
:
16
Hours
:
56
Mins
:
23
Secs
  • Brand
  • Material
  • Material Grade
  • Pin Ø (mm)
  • SWL (kg)
  • NBL (kg)
  • A (mm)
  • B (mm)
  • C (mm)
  • D (mm)
  • E (mm)
  • F (mm)
  • G (mm)
  • Weight (g)

This combination does not exist.

Product Image

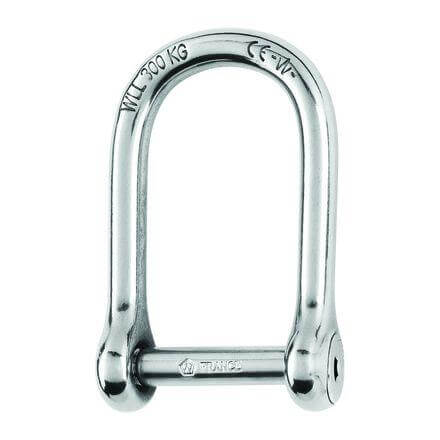

Wichard D shackle - Dia 6 mm - large size

23.00 € 23.00 €
0% Off
SKU:
N/A
Brand: Wichard

30-day money-back

 14-day returns

 Express shipping available

Share :

Self-locking shackle with allen head pin D forged in grade 316L stainless steel

The pin is locked into one of the indentations

The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging

No risks of loose due to vibrations

Outstanding working and breaking loads


Applications

Ideal to link chain and anchor

On the halyard, avoids damage to the sails

can be used with batten cars

Can be used to reduce clutter

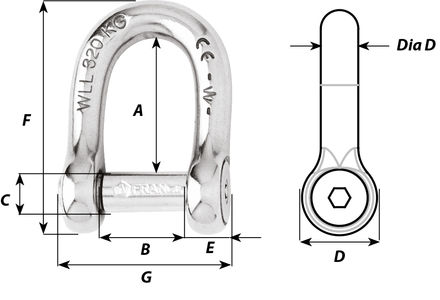

Specifications

Material Stainless Steel
Material Grade AISI 316L
Pin Ø (mm) 6
SWL (kg) 320
NBL (kg) 1500
A (mm) 42
B (mm) 25.5
C (mm) 6
D (mm) 14
E (mm) 6
F (mm) 58
G (mm) 38
Weight (g) 44
