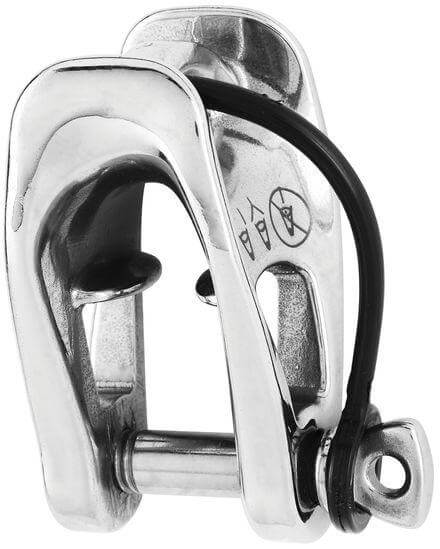

MXEvo is the new generation of one-piece blocks developed by Wichard.
Thanks to the leash, this MXEvo version can't loose its pin while opening, manipulating and closing the block. The pin is forged in high-resistant 17.4PH stainless steel.
Main MXEvo features:
> Dedicated to heavy load applications
> Impressive working and breaking load limits
> Captive pin on the standard version
> Becket function to make tackles
> Rope kept on track thanks to the fins
> Optimized weight and dimensions
> Easy opening - Easy rope installation
> Two versions existing in three sizes
> Limited rope wear thanks to the track conception
> Monobloc item (without mechanical part) for a better reliability
> For max rope size 14 mm
Applications
> 2:1 halyard purchase: mainsail, spinnaker, gennaker
> Flying sail furler terminals: tensioning at the top or from the bottom
Specifications
| Recommended line - Max Ø (mm) | 14 |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Pin Ø (mm) | 10 |
| SWL (kg) | 2640 |
| NBL (kg) | 6000 |
| Weight (g) | 186 |
