Wichard Self-locking allen head pin bow shackle - Dia 12 mm

59.15 € 53.24 €
10% Off
SKU:
N/A
Brand: Wichard

30-day money-back

 14-day returns

 Express shipping available

Share :

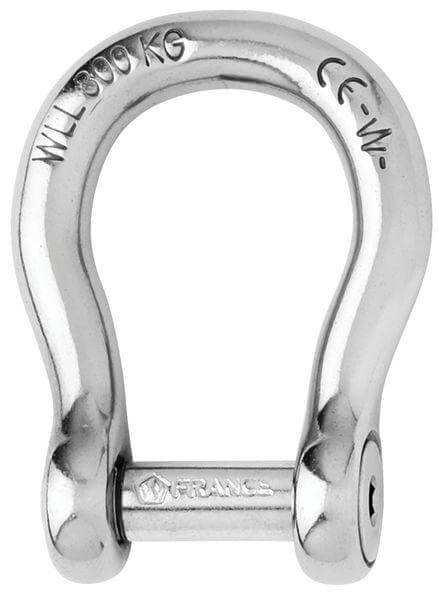

Self-locking shackle with allen head pin forged in grade 316L stainless steel

The pin is locked into one of the indentations

The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging

No risks of loose due to vibrations

Outstanding working and breaking loads


Applications

Ideal to link chain and anchor

On the halyard, avoids to damage the sails

To be used when the clutter is reduced

To be used when ample room is required

Specifications

Material Stainless Steel
Material Grade AISI 316L
Pin Ø (mm) 12
SWL (kg) 2080
NBL (kg) 6000
A (mm) 55
B (mm) 24
C (mm) 12
D (mm) 24
E (mm) 10
F (mm) 38
M (mm) 63
Weight (g) 222
