Specifications for Wichard Self-locking bow shackle - Dia 8 mm
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 8 |
| SWL (kg) | 1000 |
| NBL (kg) | 2700 |
| A (mm) | 37 |
| B (mm) | 16 |
| C (mm) | 8 |
| D (mm) | 16 |
| E (mm) | 7 |
| M (mm) | 39 |
| Weight (g) | 68 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

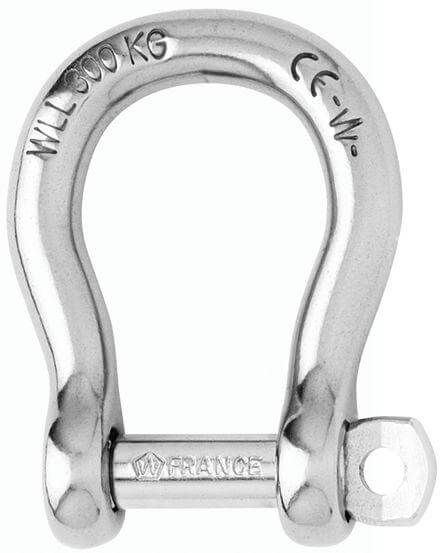

Self-locking bow shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
To be used when ample room is required
Possibility to attach several lines or cables
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 8 |
| SWL (kg) | 1000 |
| NBL (kg) | 2700 |
| A (mm) | 37 |
| B (mm) | 16 |
| C (mm) | 8 |
| D (mm) | 16 |
| E (mm) | 7 |
| M (mm) | 39 |
| Weight (g) | 68 |
