Specifications for Wichard Self-locking D shackle - Dia 12 mm
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 12 |
| SWL (kg) | 2080 |
| NBL (kg) | 6000 |
| A (mm) | 42 |
| B (mm) | 27 |
| C (mm) | 12 |
| D (mm) | 24 |
| E (mm) | 11 |
| F (mm) | 73 |
| G (mm) | 62 |
| Weight (g) | 193 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

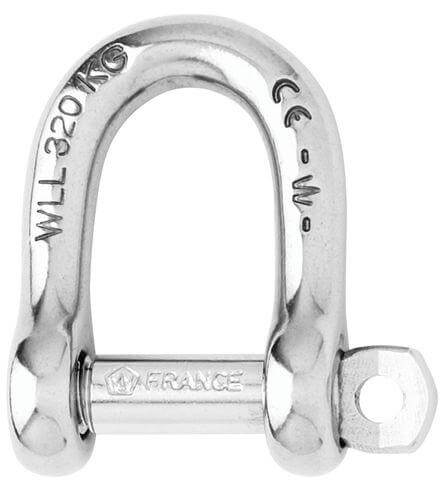

Self-locking D shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
Standard applications of shackle
Attachment applications: blocks, head …
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 12 |
| SWL (kg) | 2080 |
| NBL (kg) | 6000 |
| A (mm) | 42 |
| B (mm) | 27 |
| C (mm) | 12 |
| D (mm) | 24 |
| E (mm) | 11 |
| F (mm) | 73 |
| G (mm) | 62 |
| Weight (g) | 193 |
