Wichard Self-locking large shackle - Dia 8 mm

https://www.upffront.com/web/image/product.template/29723/image_1920?unique=0f25928

27.10 € 27.1 EUR 27.10 €

22.77 €

0% Off

Available on request

spring sale upffront sailing systems

04
Days
:
16
Hours
:
56
Mins
:
23
Secs
  • Brand
  • Material
  • Material Grade
  • Pin Ø (mm)
  • SWL (kg)
  • NBL (kg)
  • A (mm)
  • B (mm)
  • C (mm)
  • D (mm)
  • E (mm)
  • F (mm)
  • G (mm)
  • Weight (g)

This combination does not exist.

Product Image

Wichard Self-locking large shackle - Dia 8 mm

27.10 € 27.10 €
0% Off
SKU:
N/A
Brand: Wichard

30-day money-back

 14-day returns

 Express shipping available

Share :

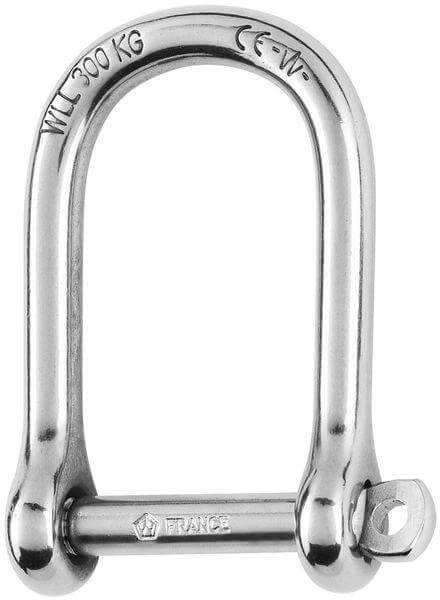

Self-locking large shackle forged in grade 316L stainless steel

The pin is locked into one of the indentations

No risks of loose due to vibrations

Outstanding working and breaking loads

WLL: only for industrial applications (lifting i.e…)

CE marking and batch number


Applications

For applications where a large opening shackle is required

Specifications

Material Stainless Steel
Material Grade AISI 316L
Pin Ø (mm) 8
SWL (kg) 760
NBL (kg) 2700
A (mm) 57
B (mm) 32
C (mm) 8
D (mm) 17
E (mm) 8
F (mm) 77
G (mm) 57
Weight (g) 67
