Specifications for Wichard Self-locking long D shackle - Dia 6 mm
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 6 |
| SWL (kg) | 600 |
| NBL (kg) | 1600 |
| A (mm) | 33 |
| B (mm) | 12 |
| C (mm) | 6 |
| D (mm) | 12 |
| E (mm) | 5 |
| F (mm) | 47 |
| G (mm) | 31 |
| Weight (g) | 27 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

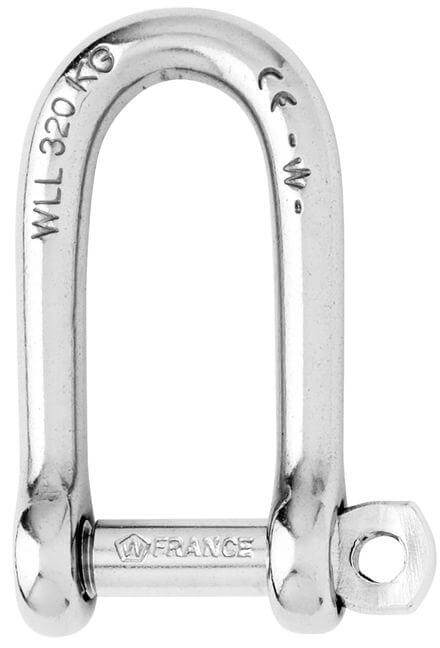

Self-locking long shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications
CE Marking and batch number
Applications
Standard applications of shackle requiring more length
Attachment applications: blocks, head …
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 6 |
| SWL (kg) | 600 |
| NBL (kg) | 1600 |
| A (mm) | 33 |
| B (mm) | 12 |
| C (mm) | 6 |
| D (mm) | 12 |
| E (mm) | 5 |
| F (mm) | 47 |
| G (mm) | 31 |
| Weight (g) | 27 |
