Specifications for Wichard Speedlink Trigger Snap Shackle Webbing Eye - SWL 2.3T
| Bail type | Swivel webbing eye |
| Total length (mm) | 102 |
| Style | Swivel Bail (Large) |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| SWL (kg) | 2320 |
| NBL (kg) | 5400 |
| A (mm) | 21 |
| B (mm) | 17 |
| C (mm) | 35 |
| Weight (g) | 174 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

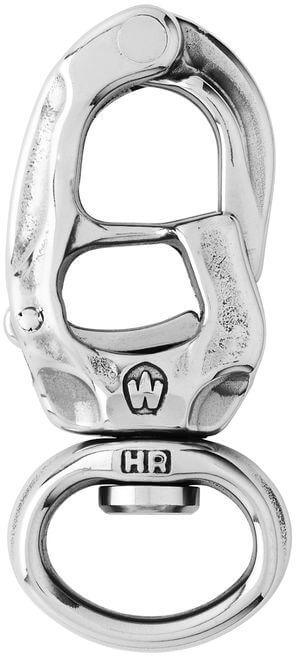

Wichard's Speedlink trigger snap shackle with webbing eye swivel and trigger release mechanism to be used with a release fid.
This range of shackles is producted with High Resistance (HR) grade stainless steel, a corrosion resistant hardened material favoured for marine environments.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Bail type | Swivel webbing eye |
| Total length (mm) | 102 |
| Style | Swivel Bail (Large) |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| SWL (kg) | 2320 |
| NBL (kg) | 5400 |
| A (mm) | 21 |
| B (mm) | 17 |
| C (mm) | 35 |
| Weight (g) | 174 |
