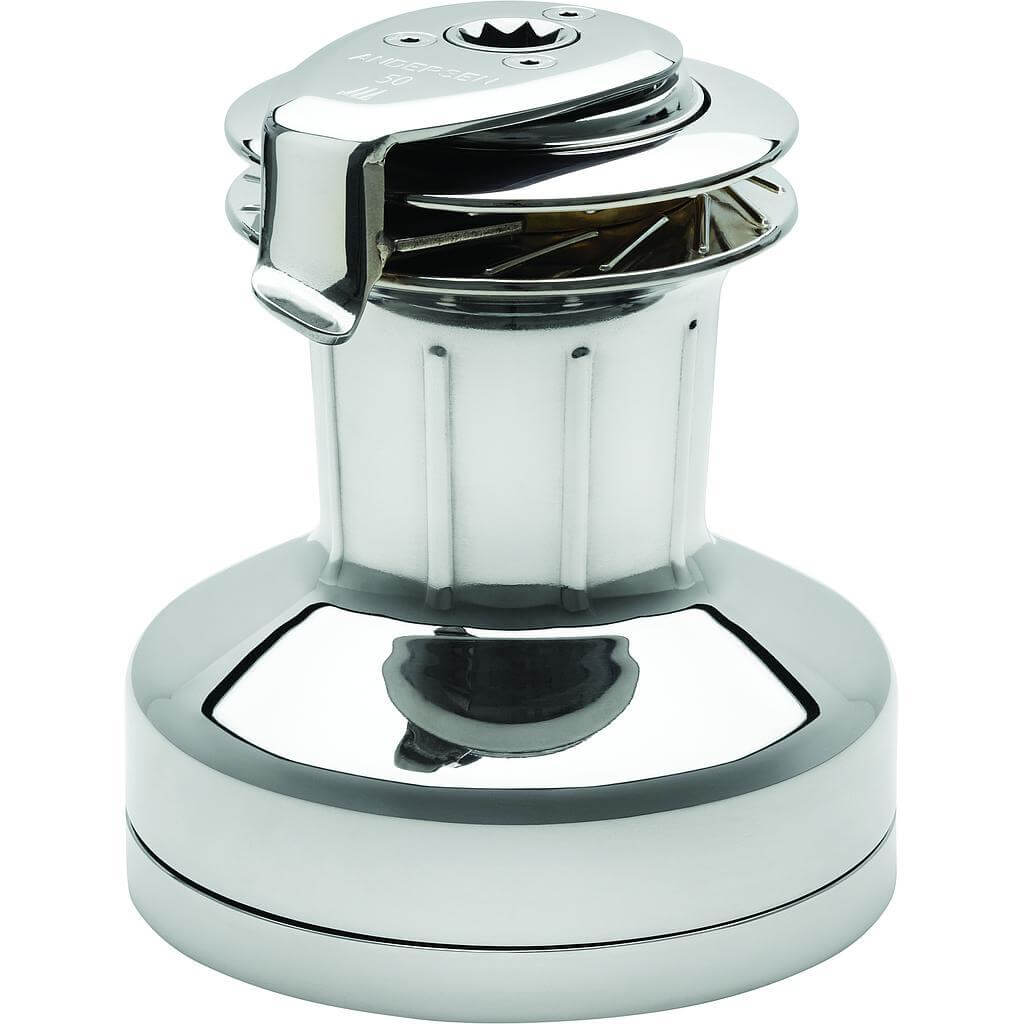

Full Stainless Self-Tailing winch featuring the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. Andersen's exclusive self-tailing mechanism automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous onboard purposes. The drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel resulting in a stunning, highly reflective winch.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Recommended line - Max Ø (mm) | 14 |
Recommended line - Min Ø (mm) | 8 |
Size | 50 |
Style | Self-Tailing |
Material | Stainless Steel |
Base Ø (mm) | 180 |
Drum Ø (mm) | 89 |
Height (mm) | 202 |
Line entry height (mm) | 90 |
Gears (Manual) | 2-Speed |
A (mm) | 89 |
B (mm) | 180 |
C (mm) | 202 |
D (mm) | 90 |
Gear ratio 1 (X : 1) | 2.8 |
Gear ratio 2 (X : 1) | 8.8 |
Power ratio 1 (X : 1) | 15.7 |
Power ratio 2 (X : 1) | 49.3 |
Weight (g) | 7800 |
