Specifications for Andersen 50 2-Speed Self-Tailing Stainless Steel Winch
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Größe | 50 |
| Style | Selbstholend |
| Material | Edelstahl |
| Basis Ø (mm) | 180 |
| Trommel Ø (mm) | 89 |
| Höhe (mm) | 202 |
| Leinen Einlaufhöhe (mm) | 90 |
| Gänge (manuell) | 2-Speed |
| A (mm) | 89 |
| B (mm) | 180 |
| C (mm) | 202 |
| D (mm) | 90 |
| Getriebuntersetzung 1. Gang (X : 1) | 2,8 |
| Getriebuntersetzung 2. Gang (X : 1) | 8,8 |
| Kraftuntersetzung 1. Gang (X : 1) | 15,7 |
| Kraftuntersetzung 2. Gang (X : 1) | 49,3 |
| Gewicht (g) | 7800 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 46ST v5.0 _ 46ST FS v5.0.F _ 50ST v.2.0 _ 50ST FS v.2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 46 _ 50 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|

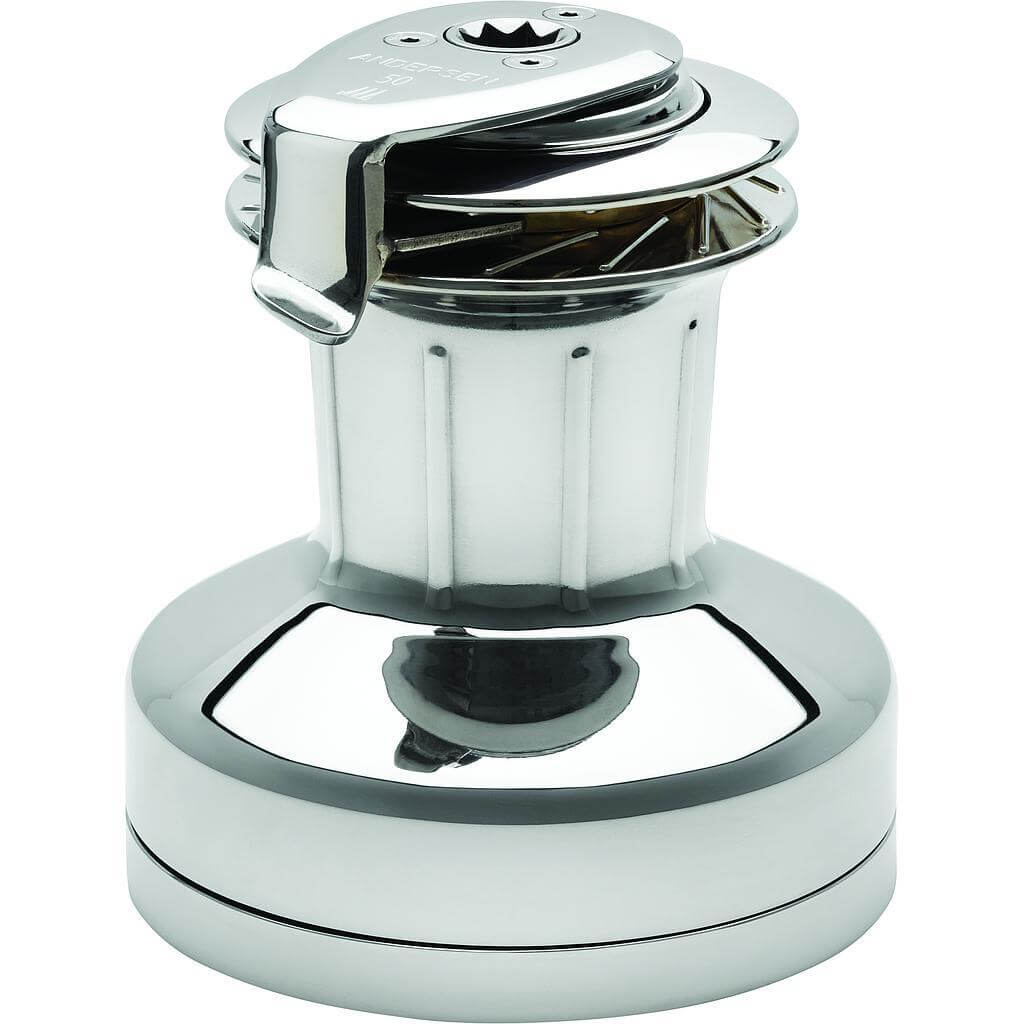

Full Stainless Self-Tailing winch featuring the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. Andersen's exclusive self-tailing mechanism automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous onboard purposes. The drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel resulting in a stunning, highly reflective winch.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Größe | 50 |
| Style | Selbstholend |
| Material | Edelstahl |
| Basis Ø (mm) | 180 |
| Trommel Ø (mm) | 89 |
| Höhe (mm) | 202 |
| Leinen Einlaufhöhe (mm) | 90 |
| Gänge (manuell) | 2-Speed |
| A (mm) | 89 |
| B (mm) | 180 |
| C (mm) | 202 |
| D (mm) | 90 |
| Getriebuntersetzung 1. Gang (X : 1) | 2,8 |
| Getriebuntersetzung 2. Gang (X : 1) | 8,8 |
| Kraftuntersetzung 1. Gang (X : 1) | 15,7 |
| Kraftuntersetzung 2. Gang (X : 1) | 49,3 |
| Gewicht (g) | 7800 |
