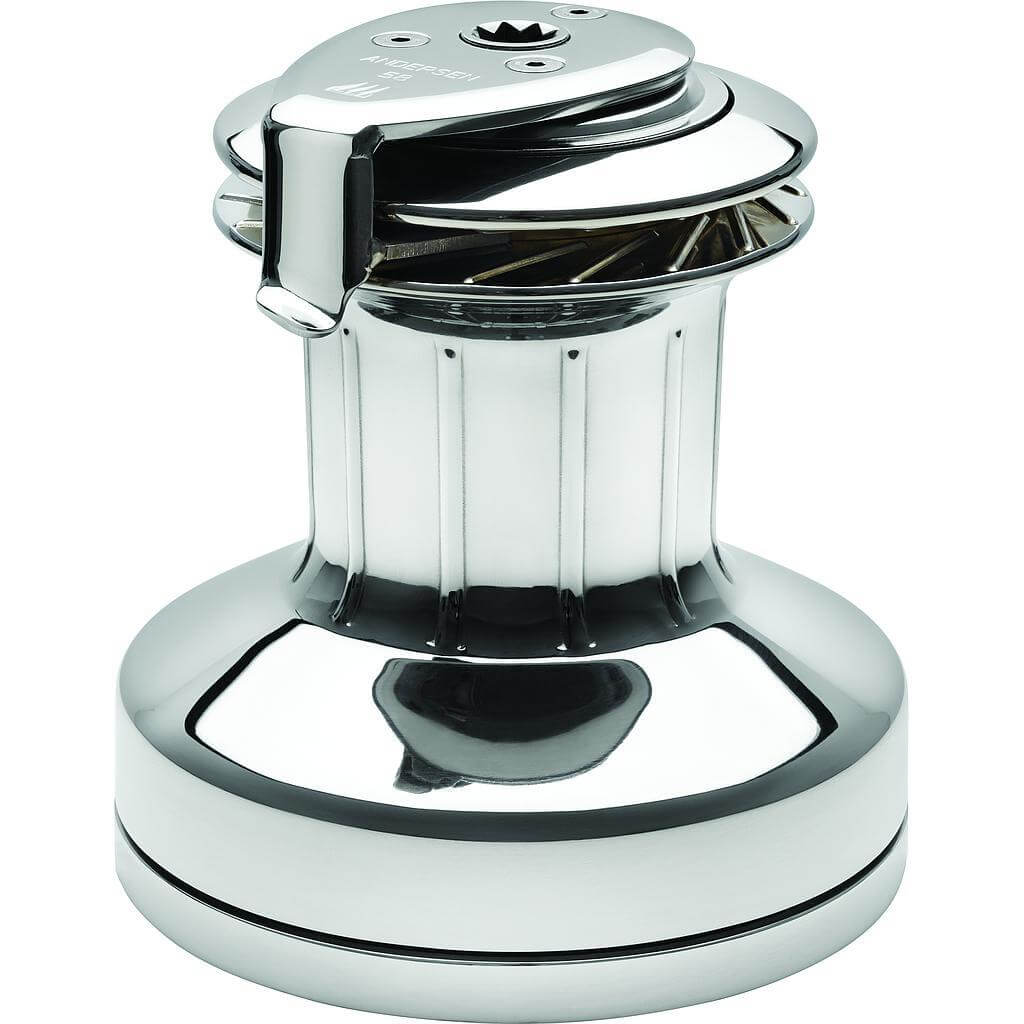

Specifications for Andersen 58 2-Speed Self-Tailing Stainless Steel Winch
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 58 |
| Style | Self-Tailing |
| Material | Stainless Steel |
| Base Ø (mm) | 230 |
| Drum Ø (mm) | 115 |
| Height (mm) | 251 |
| Line entry height (mm) | 111 |
| Gears (Manual) | 2-Speed |
| A (mm) | 115 |
| B (mm) | 230 |
| C (mm) | 251 |
| D (mm) | 111 |
| Gear ratio 1 (X : 1) | 3.7 |
| Gear ratio 2 (X : 1) | 13.1 |
| Power ratio 1 (X : 1) | 16 |
| Power ratio 2 (X : 1) | 57.1 |
| Weight (g) | 16000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 58ST FS v2.0.F _ 62ST FS v2.0.F Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 58 _ 62 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
Full Stainless Self-Tailing winch featuring the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. Andersen's exclusive self-tailing mechanism automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous onboard purposes. The drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel resulting in a stunning, highly reflective winch.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 58 |
| Style | Self-Tailing |
| Material | Stainless Steel |
| Base Ø (mm) | 230 |
| Drum Ø (mm) | 115 |
| Height (mm) | 251 |
| Line entry height (mm) | 111 |
| Gears (Manual) | 2-Speed |
| A (mm) | 115 |
| B (mm) | 230 |
| C (mm) | 251 |
| D (mm) | 111 |
| Gear ratio 1 (X : 1) | 3.7 |
| Gear ratio 2 (X : 1) | 13.1 |
| Power ratio 1 (X : 1) | 16 |
| Power ratio 2 (X : 1) | 57.1 |
| Weight (g) | 16000 |
